Desktop
Table top

Desktop

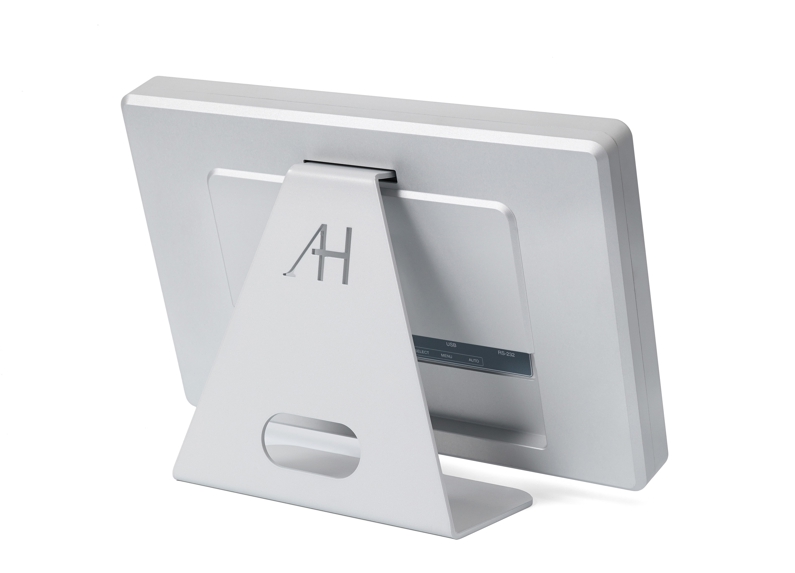

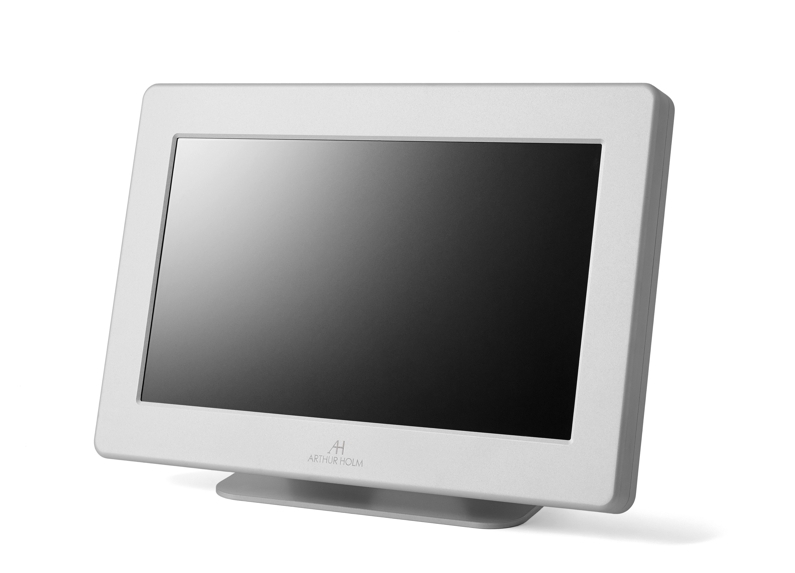

Elegant desktop monitors manufactured in solid milled aluminium with a light tilting base and anodised finish. If a small monitor is required, with optimised height to be used in institutions, reception areas and information counters, Desktop is the preferred and most exclusive solution. Desktop monitors are available in 15″ and 17″. Other sizes upon request.

Options

Positions

Desktop range
AH15DTA

• Manually adjustable tilt angle
• 15″
• Fully aluminium frame
• Compact design

View detailsHide details
Display
  • Size
  • 15” TFT Active Matrix

  • Resolution
  • 1024 (h) x 768 (v)

  • Brightness
  • 400 cd/m2

  • Contrast ratio
  • 700:1

  • Pixel
  • 0.297 (h) x 0.297 (v) mm

  • Viewing angle
  • 70°/70° (u/d) / 80°/80° (l/r))

  • Viewing area
  • 304.1 (h) x 228.1 (v) mm

  • LED backlight lifespan
  • 50.000 hrs

  • Response time
  • Tr 5 ms, Tf 11 ms

  • Temperature
  • Operating 0ºC — +40ºC
    Storage -20ºC — +60ºC

Materials
  • Cabinet
  • Housing made from solid milled aluminium with anodised finish

Connectivity
  • Input signal
  • DVI-I (1 input) – HDCP Compliant
    DVI-D (1 input) – HDCP Compliant

AH17DTHDA

• Manually adjustable tilt angle
• 17,3″
• Full HD
• Fully aluminium frame
• Compact design

View detailsHide details
Display
  • Size
  • FULL HD 17.3” TFT Active Matrix

  • Resolution
  • 1920 (h) x 1080 (v)

  • Brightness
  • 400 cd/m2

  • Contrast ratio
  • 600:1

  • Pixel
  • 0.1989 (h) x 0.1989 (v) mm

  • Viewing angle
  • 60°/80° (u/d) / 80°/80° (l/r)

  • Viewing area
  • 381.888 (h) x 214.812 (v) mm

  • LED backlight lifespan
  • 50.000 hrs

  • Response time
  • Tr 37 ms, Tf 3 ms

  • Temperature
  • Operating 0ºC — +40ºC
    Storage -20ºC — +60ºC

Materials
  • Cabinet
  • Housing made from solid milled aluminium with anodised finish

Connectivity
  • Input signal
  • DVI-I (1 input) – HDCP Compliant
    DVI-D (1 input) – HDCP Compliant
