Dynamic1Twin
Motorised monitors to integrate in furniture

Dynamic1Twin

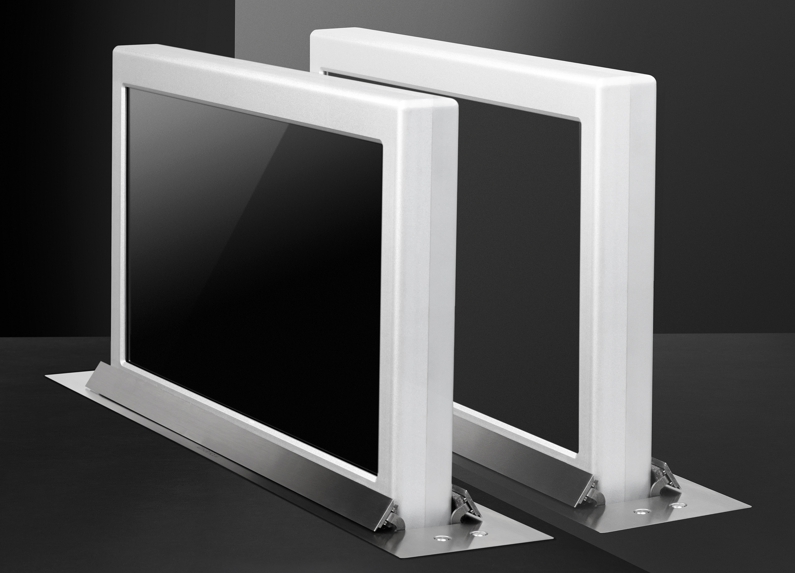

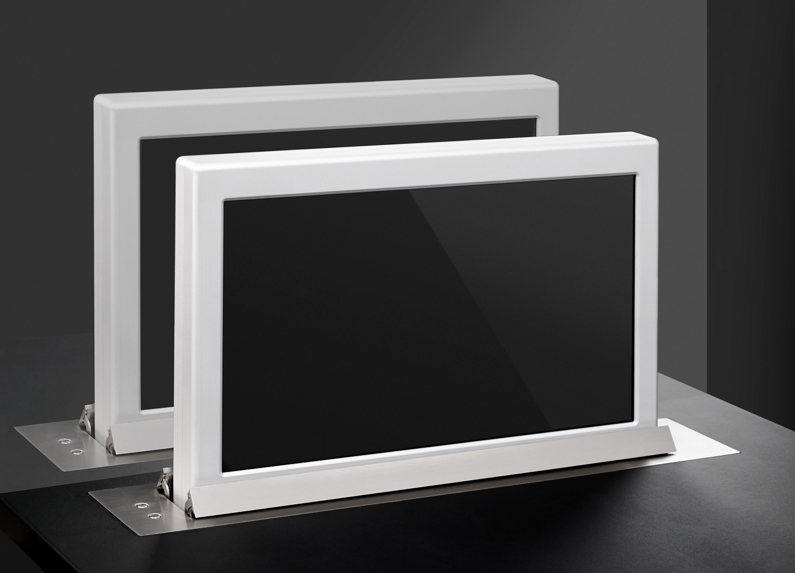

Dynamic1Twin is a vertically retractable monitor with double screen. Two monitors are placed back to back in a compact anodised aluminium frame displaying different contents for a 2 way communication. It is designed for reception desks, information counters or meeting and conference room tables with limited space. The screens are only visible when required, disappearing inside the table desk when not needed by simply pressing a button or by remote control.

Dynamic1Twin has an extremely fast lift system with a very low noise level. Very simple to install, these monitors are maintenance free. To protect the user, Dynamic1Twin double screen monitors are equipped with a safety system which stops the movements in case of resistance detection. They are remotely controlled and diagnosable through ERT interfaces in a very simple and cost effective way.

Dynamic1Twin double screen monitor
Double screen monitor
Monitor for reception desks
Monitor for information counters
Dynamic1Twin retractable monitor with double screen

Dynamic1Twin, a retractable monitor with double screen

Options

Positions

Dynamic1Twin range
AH17D1HDA2F
  • Retractable
  • Double sided display
  • 17,3″
  • Full HD
  • Motorised



Display
  • Size
  • FULL HD, 17.3” TFT Active Matrix
    widescreen

  • Resolution
  • 1920 (h) x 1080 (v)

  • Brightness
  • 400 cd/m2

  • Contrast ratio
  • 600:1

  • Pixel
  • 0.1989 (h) x 0.1989 (v) mm

  • Viewing angle
  • 60º/80º (u/d) / 80º/80º (l/r)

  • Viewing area
  • 381.888 (h) x 214.812 (v) mm

  • LED backlight lifespan
  • 50.000 hrs

  • Response time
  • Tr 37 ms, Tf 3 ms

  • Temperature
  • Operating 0ºC — +40ºC
    Storage -20ºC — +60ºC

Materials
  • Frame
  • Anodised Aluminium

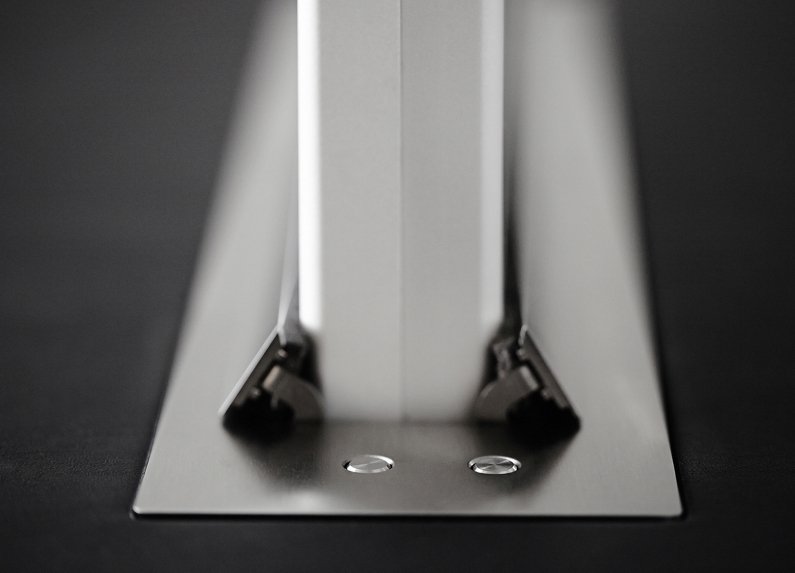

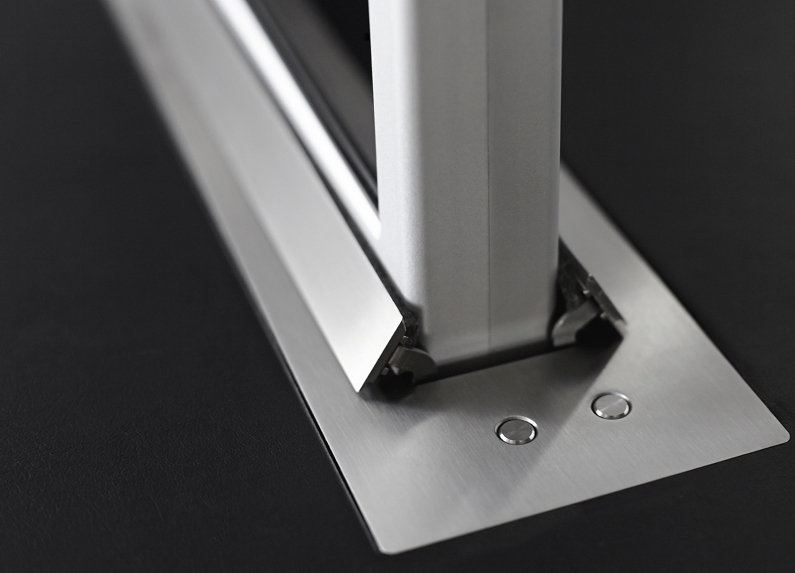

  • Cover plate
  • Stainless steel. Optional matte finish, or can be veneered to match the furniture

Connectivity
  • Input signal
  • DVI-I (1 input for each panel) – HDCP Compliant
    DVI-D (1 input for each panel) – HDCP Compliant

  • RJ45 CAT5 (with loop)
  • Addressable RS422 monitor control by AHnet protocol

  • GPI (SubD9)
  • Up/Down control

AH19D116A2F
  • Retractable
  • Double sided display
  • 19″
  • Motorised



Display
  • Size
  • 19” TFT Active Matrix widescreen

  • Resolution
  • 1440 (h) x 900 (v)

  • Brightness
  • 250 cd/m2

  • Contrast ratio
  • 1000:1

  • Pixel
  • 0.2835 (h) x 0.2835 (v) mm

  • Viewing angle
  • 80°/80° (u/d) / 85°/85° (l/r)

  • Viewing area
  • 408.24 (h) x 255.15 (v) mm

  • LED backlight lifespan
  • 30.000 hrs

  • Response time
  • Tr 3.6 ms, Tf 1.4 ms

  • Temperature
  • Operating 0ºC — +40ºC
    Storage -20ºC — +60ºC

Materials
  • Frame
  • Anodised Aluminium

  • Cover plate
  • Stainless steel. Optional matte finish, or can be veneered to match the furniture

Connectivity
  • Input signal
  • DVI-I (1 input for each panel) – HDCP Compliant
    DVI-D (1 input for each panel) – HDCP Compliant

  • RJ45 CAT5 (with loop)
  • Addressable RS422 monitor control by AHnet protocol

  • GPI (SubD9)
  • Up/Down control

AH22D116A2F
  • Double sided display
  • 21,5″
  • Full HD
  • Motorised
Display
  • Size
  • FULL HD 21.5” TFT Active Matrix, widescreen

  • Resolution
  • 1920 (h) x 1080 (v)

  • Brightness
  • 250 cd/m2

  • Contrast ratio
  • 1000:1

  • Pixel
  • 0.247 (h) x 0.247 (v) mm

  • Viewing angle
  • 178° (v) / 178° (h)

  • Viewing area
  • 476.064 (h) x 267.768 (v) mm

  • LED backlight lifespan
  • 30.000 hrs

  • Response time
  • Tg-g 25 ms

  • Temperature
  • Operating 0ºC — +40ºC
    Storage -20ºC — +60ºC

Materials
  • Frame
  • Anodised Aluminium

  • Cover plate
  • Stainless steel. Optional matte finish, or can be veneered to match the furniture

Connectivity
  • Input signal
  • DVI-I (1 input for each panel) – HDCP Compliant
    DVI-D (1 input for each panel) – HDCP Compliant

  • RJ45 CAT5 (with loop)
  • Addressable RS422 monitor control by AHnet protocol

  • GPI (SubD9)
  • Up/Down control
