Motorized Monitors – DB3
Motorized monitors for furniture integration

Motorized Monitors – DB3

Introduction

Innovation, usability, aesthetics, discretion, durability, and sustainability were all considered in the design of this new retractable aluminum monitor. The design of the DB3 follows the style of its predecessor, the DB2. The design and concept of the DB3 have been considered crucial aspects. These include the ability to adjust the screen’s position on the table to limit its height, addressing ergonomic comfort needs and ensuring visibility for people seated around a meeting table.

Furthermore, the screen smoothly inclines towards the user, allowing them to stop the movement and memorize the position at the desired angle. The movement is harmonious and silent, maintaining the beauty of the DB2 with its simple, elegant, and timeless style. True to the company’s values, sustainable materials such as aluminum and glass were used to create this innovative retractable monitor. The 21.5” LCD industrial display panel comes with a long life, and the in-house designed electronics are energy-efficient. The AHlink app offers comfortable and intuitive adjustment during integration and throughout the life of this impressive monitor.
The monitor provides 2 DVI HDCP compliant inputs, and the movements can be locally controlled by capacitive touch buttons integrated on the screen’s front glass, by RS-422, or via the wireless app: AHlink. The monitor emerges vertically from the table’s surface and can slide down up to 20 degrees of inclination on top of the desk. The automated hatch is specially designed for veneering and table top matching, providing a streamlined finish for the meeting table; the automated hatch is also available in black anodized aluminium making the monitor ready to install directly from the shipping box.

And options of touch screen and DynamicShare are available.

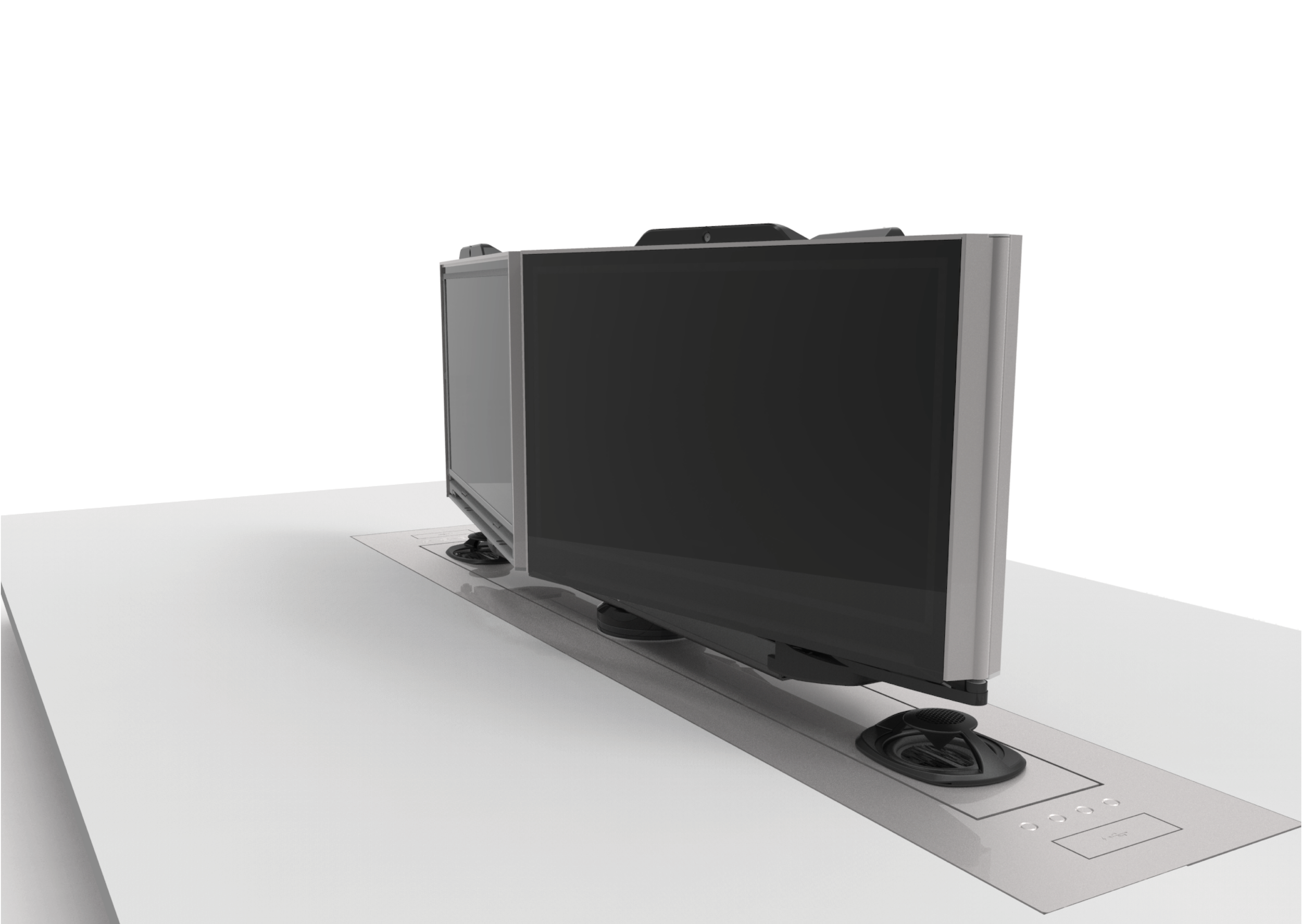

DB3 motorized retractable monitor.

AH22DB3
  • Motorized HDCP compliant 21.5” monitor
  • Automated hatch prepared for veneering
  • Adjustable screen position from vertical (90) to 20 degrees
  • Memory to fix and recall position
  • 2 DVI inputs
  • Touch screen optional
  • DynamicShare optional / Dynamic Loop optional
  • AHlink compatible
