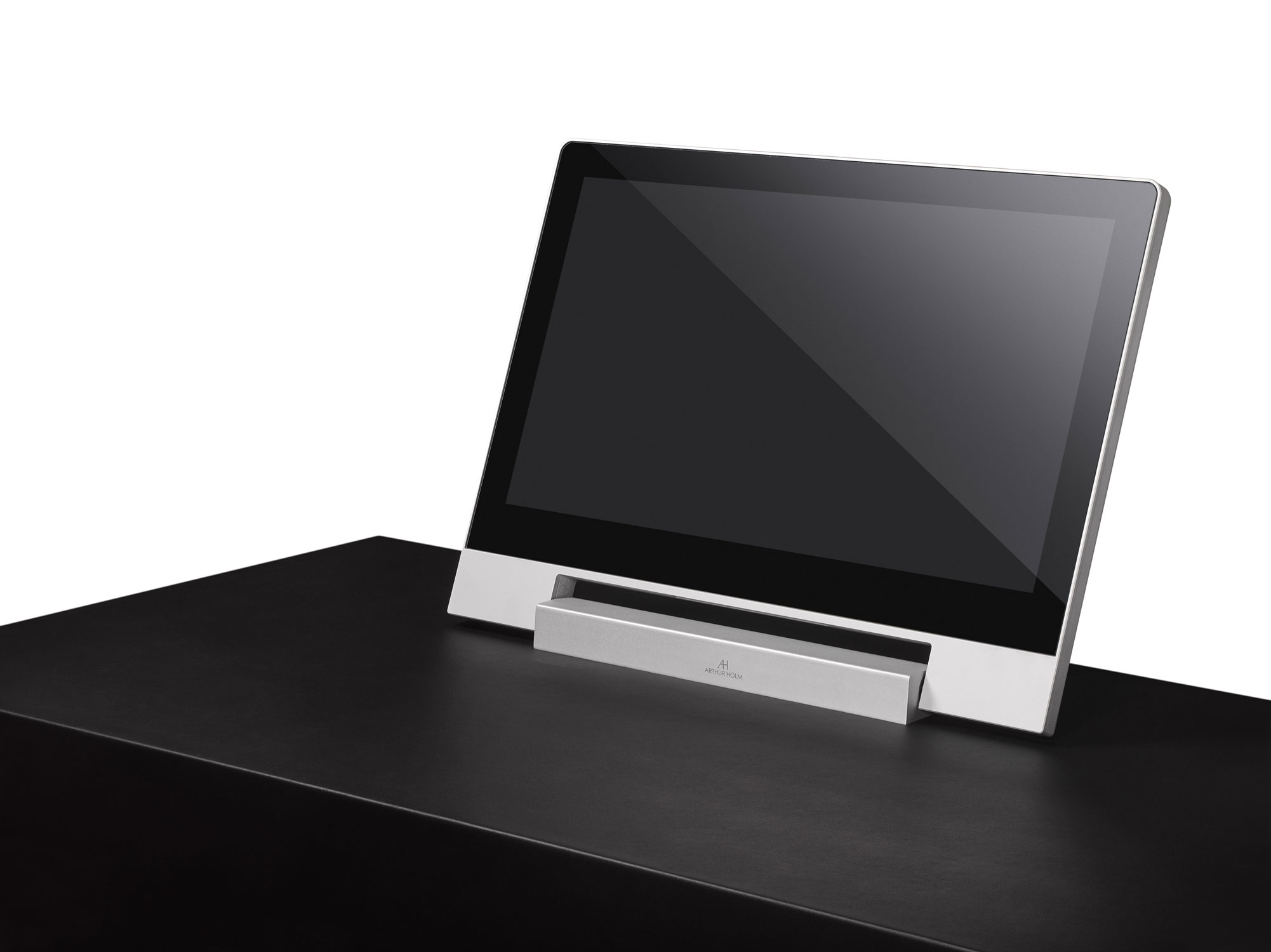

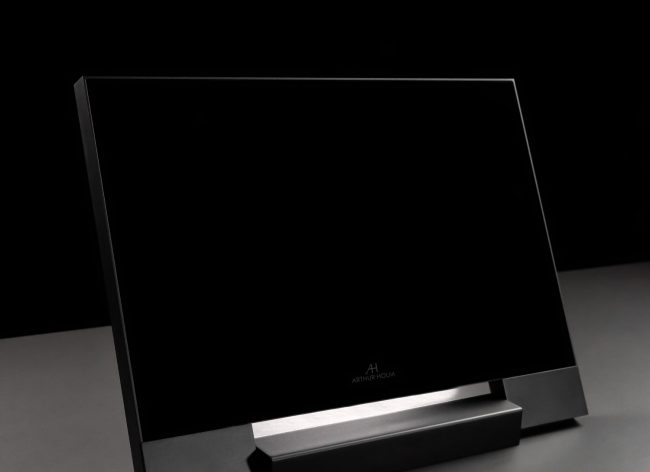

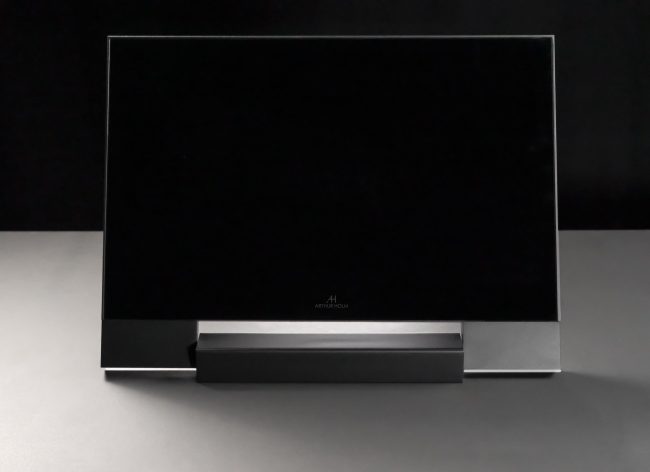

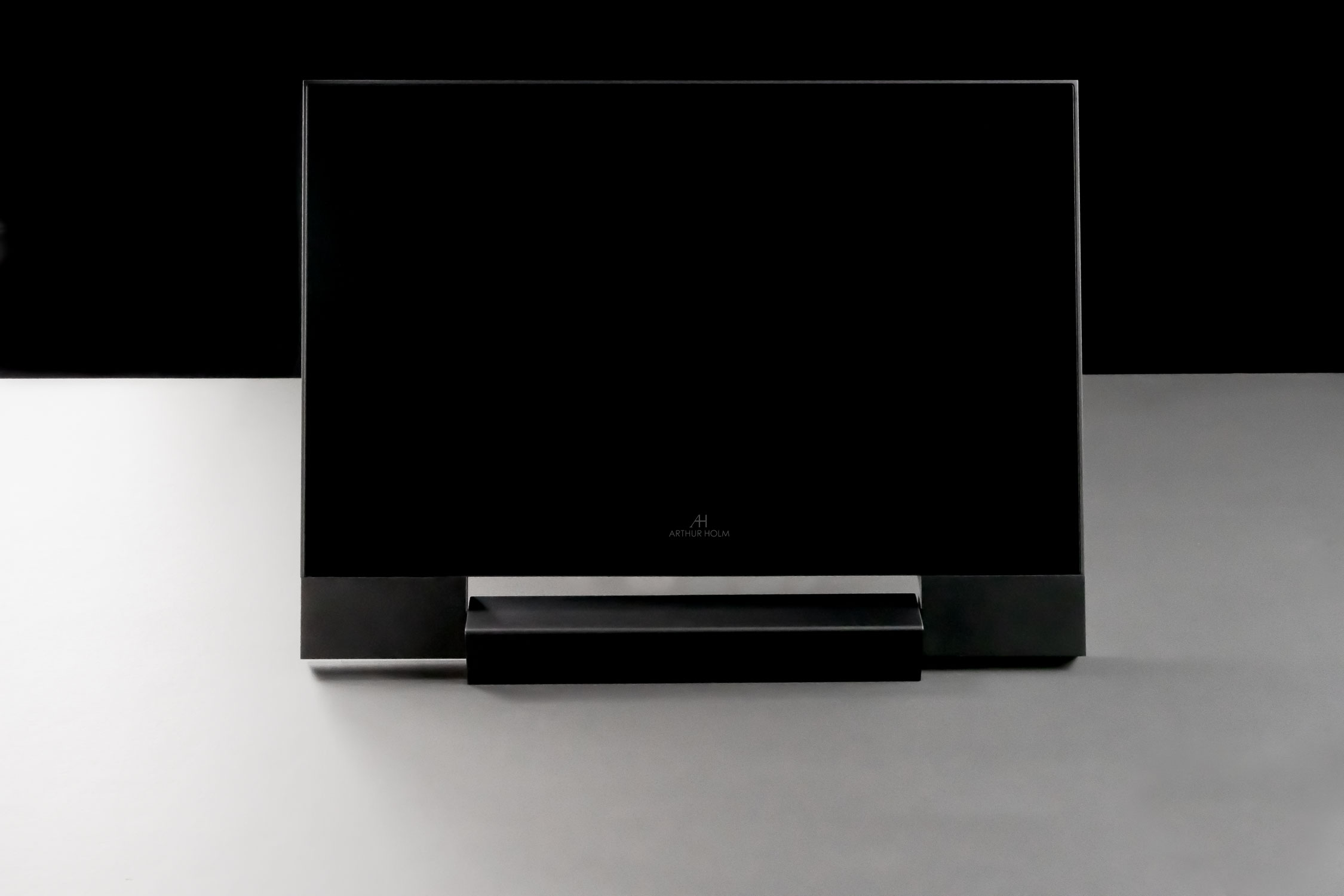

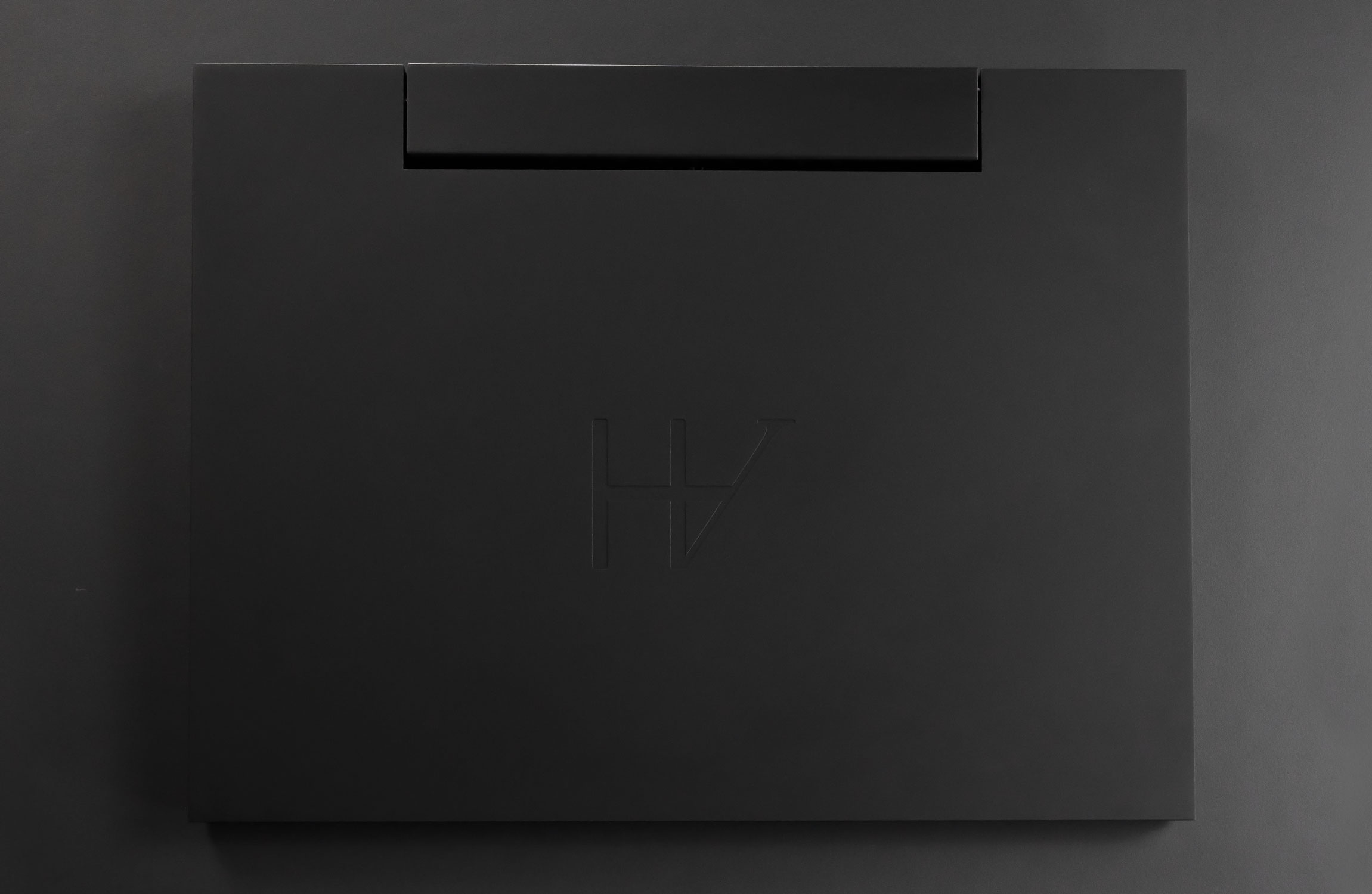

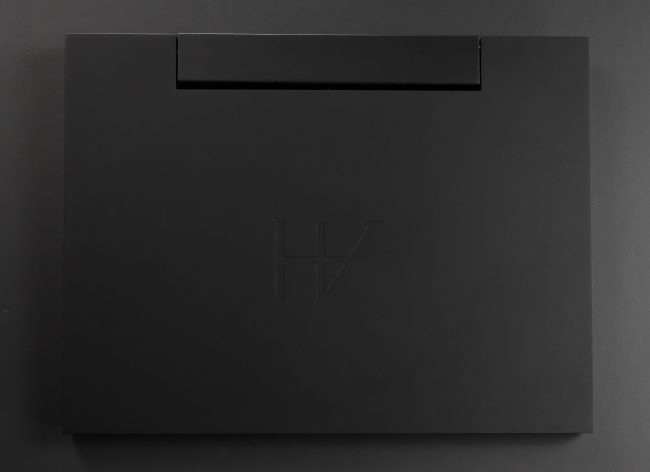

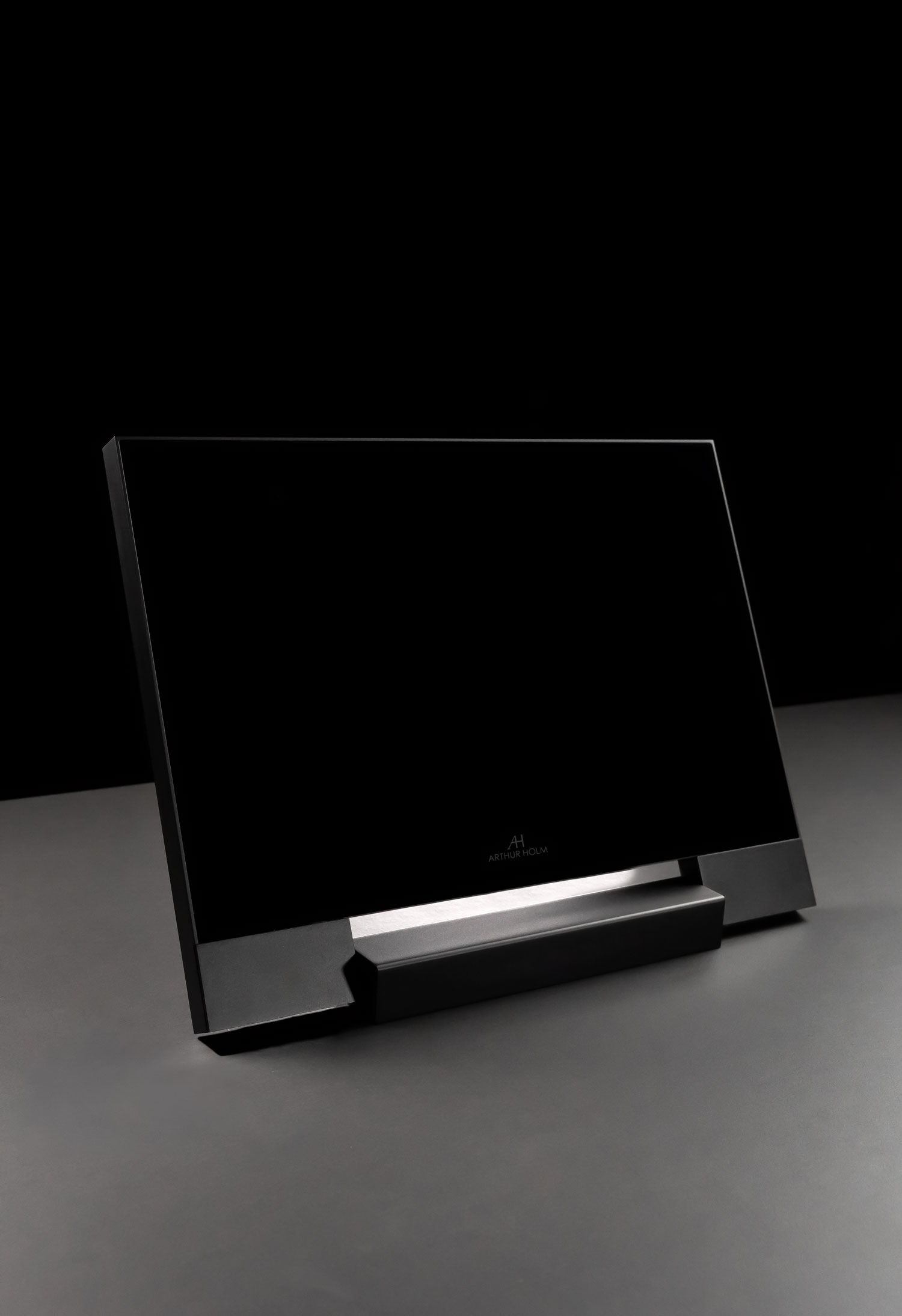

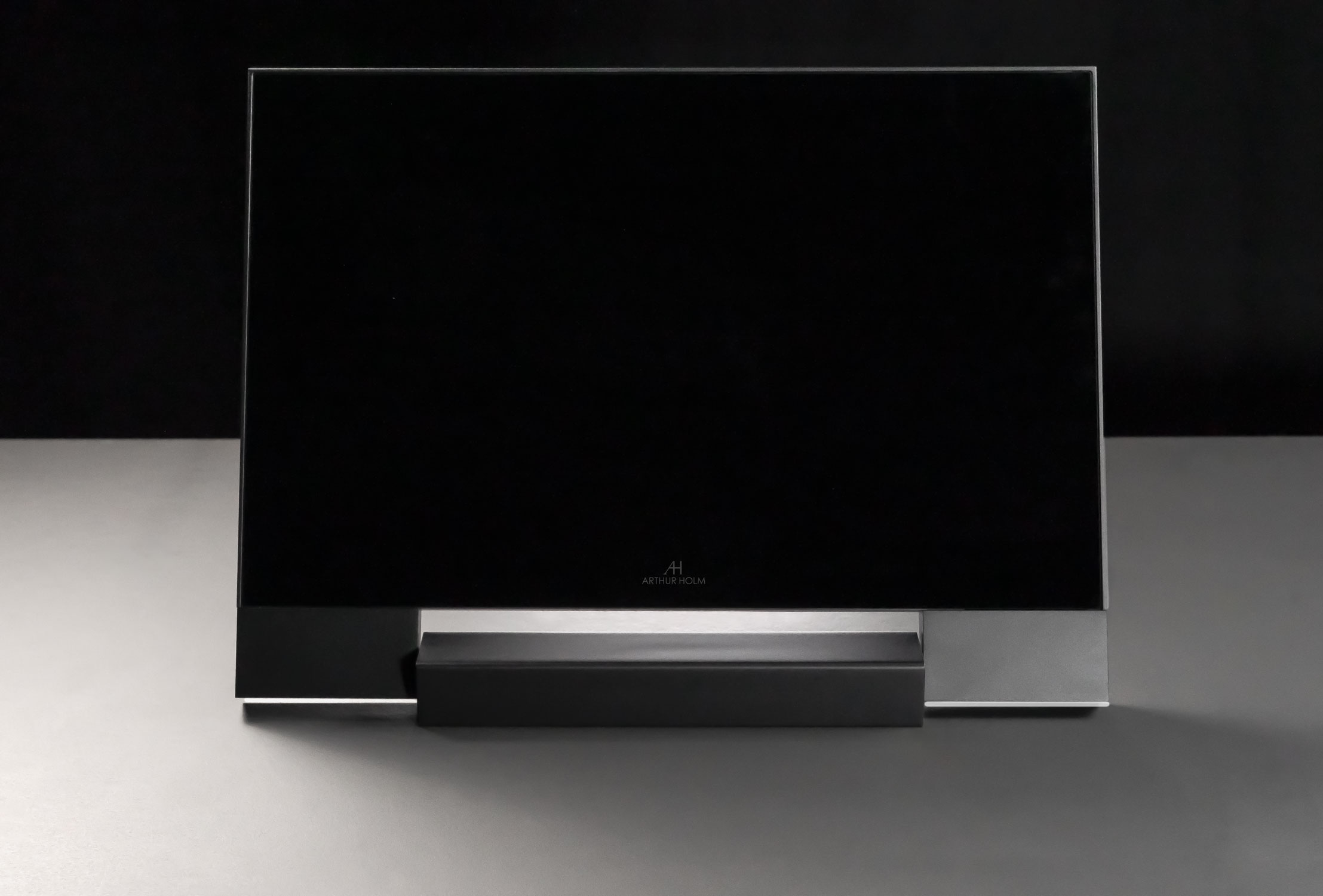

AH2 is a manually foldable monitor. The working position is adjustable from 110º to a complete folded position on the table with the screen facing down. AH2 has been designed for an easy installation on standard furniture with a compact and stylish elegance. The AH2 manual monitor is entirely built in solid, milled aluminum with anodized finish, including an anti-reflection black edged glass that can be also a touch screen (optional). AH2 manual monitor is available in 17″ and 22″.
Positions

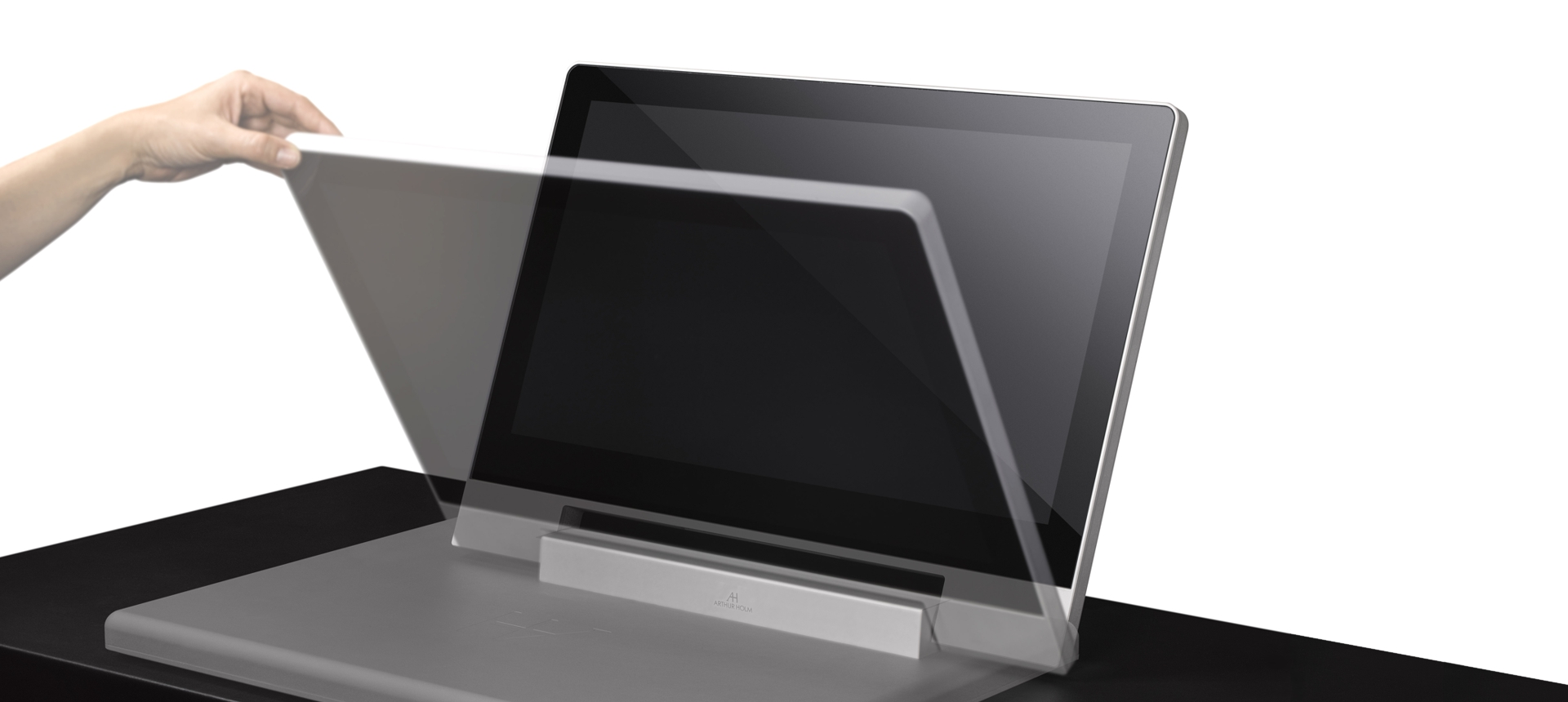

- Manually foldable from 0° to 110°
- 17,3”
- Full HD
- Totally adjustable position
- Ready for desk mounting
- Size
FULL HD 17.3” TFT Active Matrix,
widescreen
- Resolution
1920 (h) x 1080 (v)
- Brightness
400cd/m2
- Contrast ratio
600:1
- Pixel
0.1989 (h) x 0.1989 (v) mm
- Viewing angle
60°/80° (u/d) / 80°/80° (l/r)
- Viewing area
381.888 (h) x 214.812 (v) mm
- LED backlight lifespan
50.000 hrs
- Response time
Tr 37 ms, Tf 3 ms
- Temperature
Operating 0ºC — +40ºC
Storage -20ºC — +60ºC
- Cabinet
Housing made from solid milled aluminum with anodized finish. Glass front anti-reflective with black-edge.
- Input signal
HDMI (1 input) – HDCP Compliant
- Manually foldable from 0° to 110°
- 21,5”
- Full HD
- Totally adjustable position
- Ready for desk mounting
- Size
FULL HD 21.5” TFT Active Matrix,
widescreen
- Resolution
1920 (h) x 1080 (v)
- Brightness
250cd/m2
- Contrast ratio
1000:1
- Pixel
0.247 (h) x 0.247 (v) mm
- Viewing angle
178° (v) / 178° (h)
- Viewing area
476.064 (h) x 267.786 (v) mm
- LED backlight lifespan
30.000 hrs
- Response time
Tg-g 25 ms
- Temperature
Operating 0ºC — +40ºC
Storage -20ºC — +60ºC
- Cabinet
Housing made from solid milled aluminum with anodised finish.Glass front anti-reflective with black-edge.
- Input signal
HDMI (1 input) – HDCP Compliant
