Motorized monitor – DynamicSignatureDisplay
Motorized monitors for furniture integration

Motorized monitor – DynamicSignatureDisplay

Identifying the user

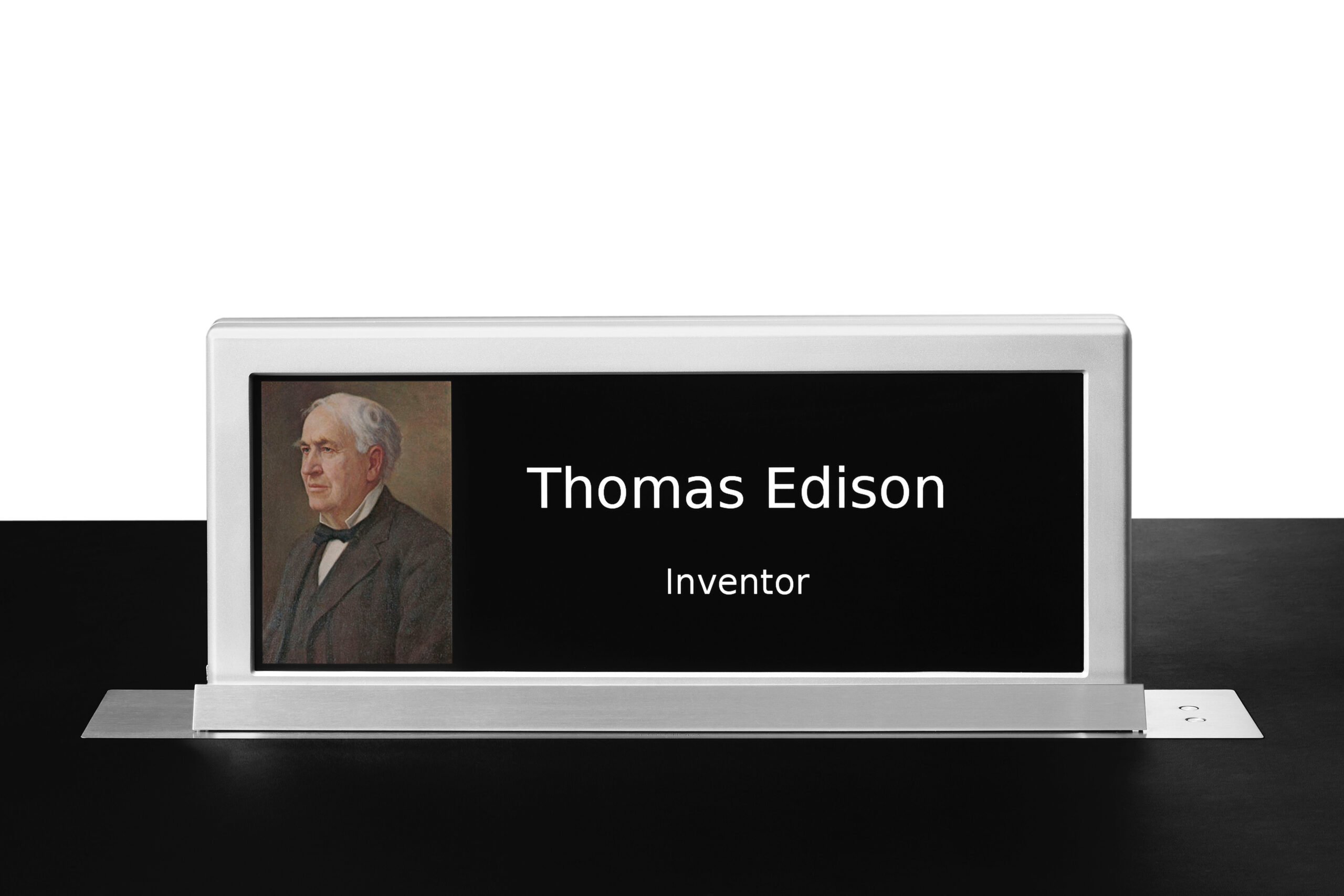

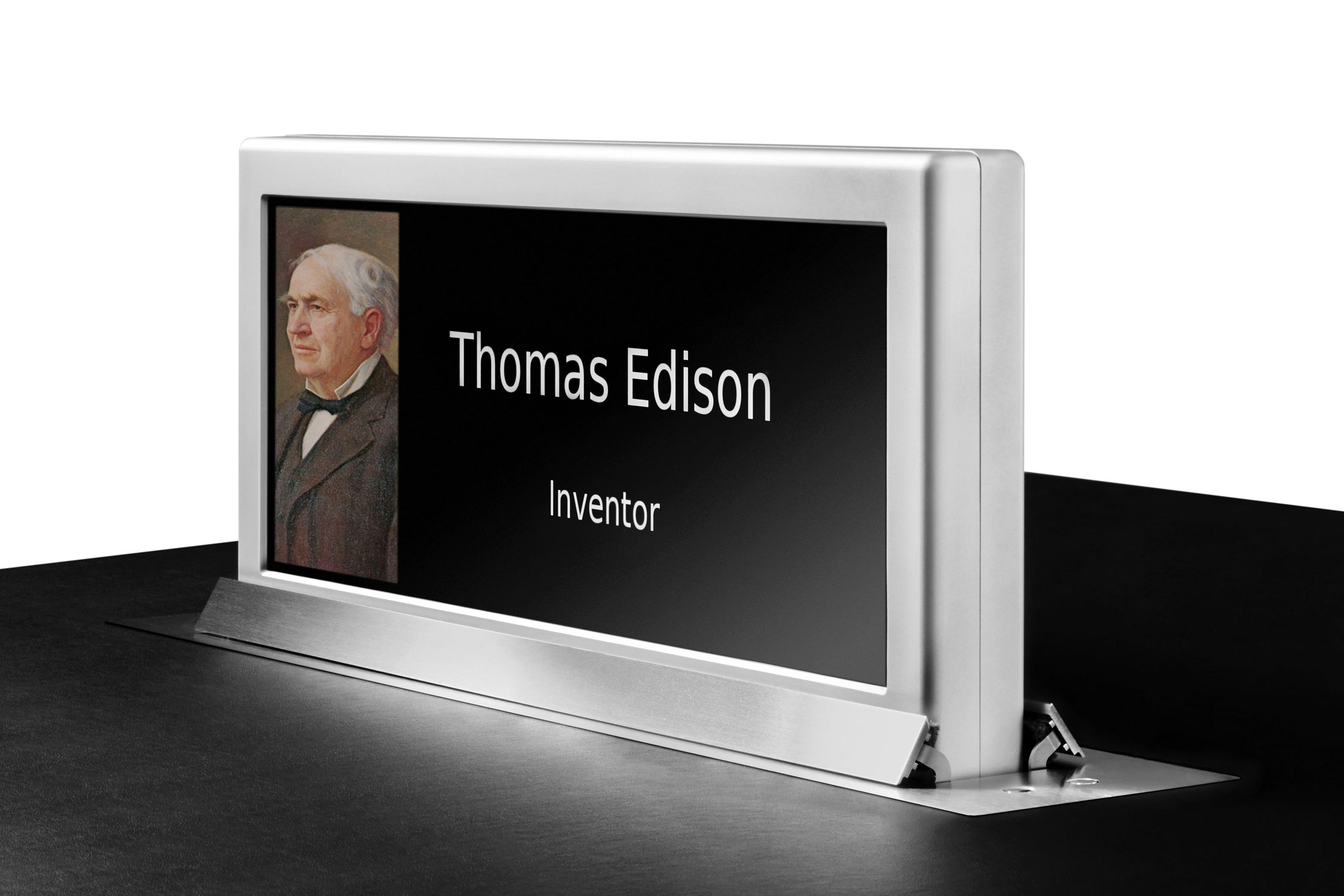

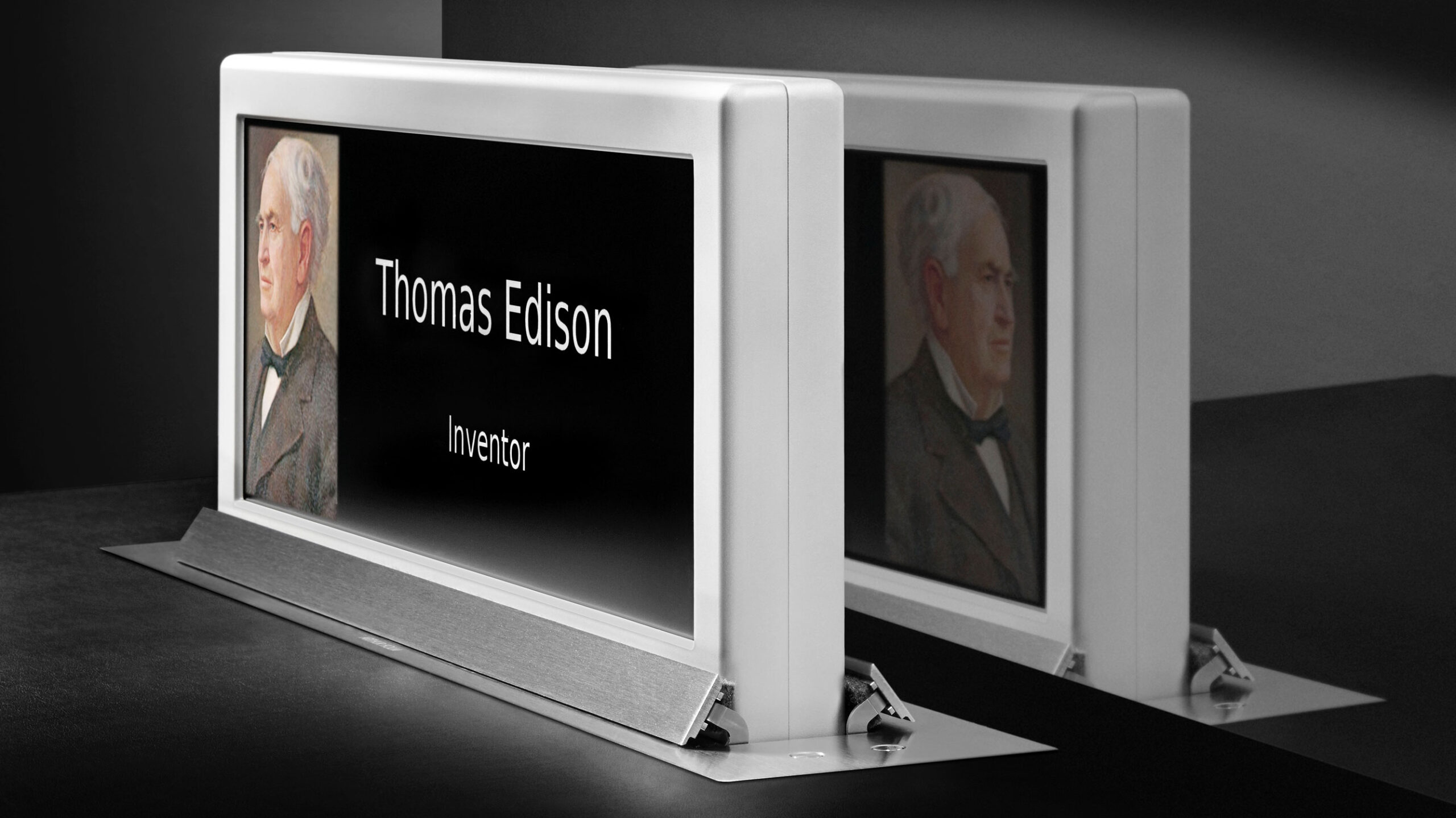

DynamicSignatureDisplay is a retractable digital labelling monitor for auditoriums, institutions and public communication spaces. The product consists of a vertically motorized retractable single or double side stretched screen and a Linux based software which allows a simple display of a picture and a name (or any digital content) in full colour. In the double screen version the two screens are placed back to back in a compact, anodized aluminum frame, displaying different information on each one. The side facing the audience will display the picture and name of the conference participant, while the other side can show additional data to the viewer.

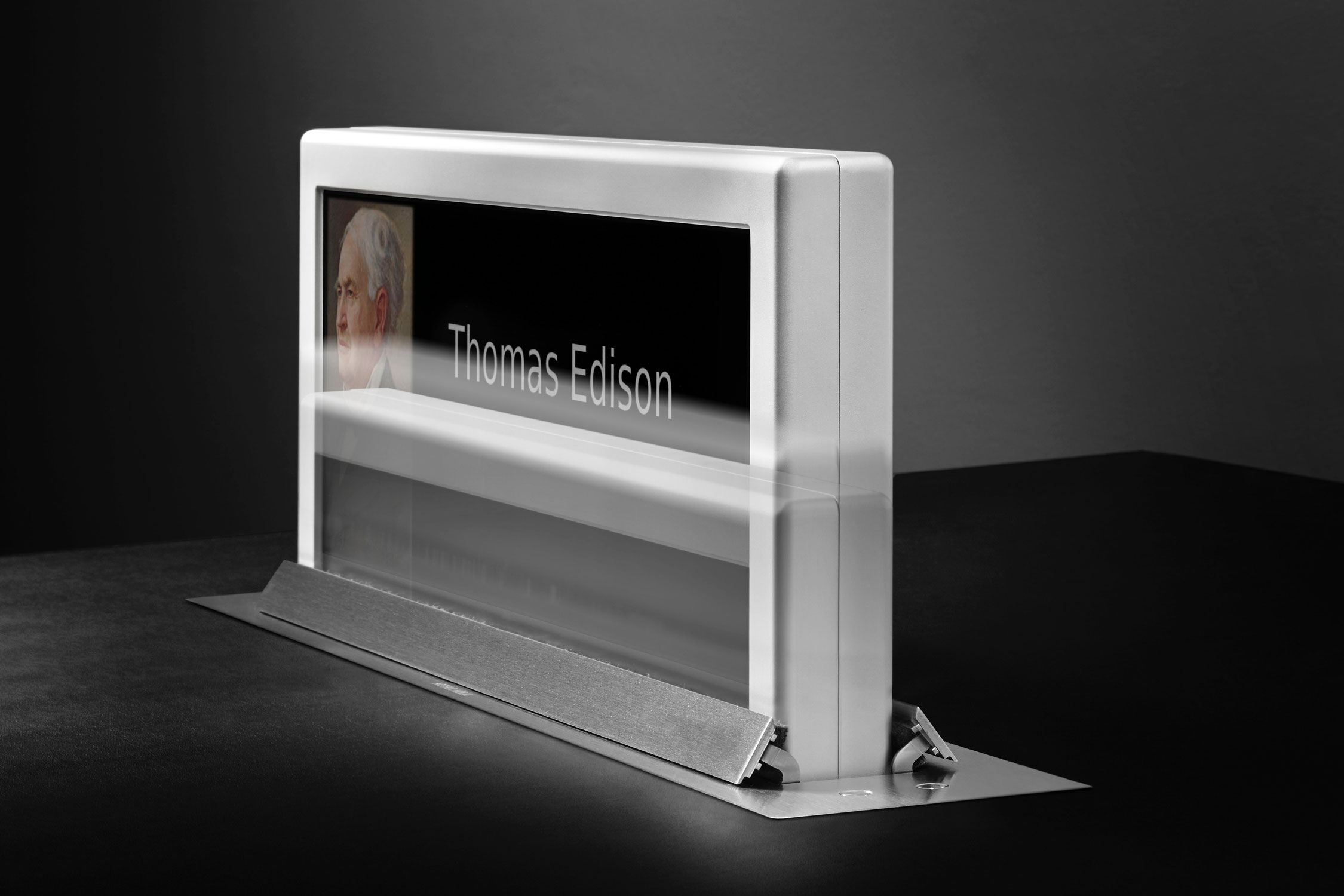

The DynamicSignatureDisplay screens are only visible when needed and they have a low height, disappearing within the table desk by pressing a button or through a RS-485 remote control. They provide a fast and silent retractable system with a safety mechanism and require no maintenance. This solution comprises a Linux based software which allows a clean and simple display of picture and text, being ideal for name tagging applications over a single CAT-5 cable per screen.

DynamicSignatureDisplay labelling motorized monitors
DynamicSignatureDisplay monitor for digital identification
retractable monitor to show digitally the participant name
single or double sided monitor with digital identification
Retractable digital labelling monitors

DynamicSignatureDisplay is a digital labelling retractable monitor with single or double screen.


DynamicSignatureDisplay range
  • Retractable
  • Half 19’’ widescreen
  • Double side
  • Fully motorized
  • Size
  • TFT Active Matrix. Double face monitor. Half widescreen,  19’’ screens

  • Brightness
  • 250 cd/m2

  • Contrast ratio
  • 1000:1

  • Pixel
  • 0.2835 (h) x 0.2835 (v) mm

  • Viewing angle
  • 80°/80° (u/d) / 85°/85° (l/r)

  • Viewing area
  • 408 (h) x 120 (v) mm

  • LED backlight lifespan
  • 30.000 hrs

  • Response time
  • Tr 3.6 ms, Tf 1.4 ms

  • Temperature
  • Operating 0ºC — +40ºC
    Storage -20ºC — +60ºC

  • Cabinet & cover plate
  • Solid aluminum monitor housing in natural anodized finish with cover plate in brushed stainless steel

  • RJ45 CAT5
  • Network ethernet connection. Embeded LINUX integrated with special software for Signature Name, externally controlled by LINUX server

  • RJ45 CAT5 (with loop)
  • Addressable RS422 monitor control by AHnet protocol

  • GPI (SubD9)
  • Up/Down control
