DB2
Motorised monitors to integrate in furniture

DB2

DB2 by Arthur Holm is the thinnest motorised retractable monitor on the market. This monitor range creates minimum impact on the furniture design and is easy to integrate, intuitive to use (one touch sensor) and almost invisible (no cover plate) when not in operation. DB2 monitors are elegant, beautiful from all angles, and can be discreetly integrated in the meeting room table, disappearing within the desk with a harmonious silent drive. Design and functionality have been intelligently combined to create this advanced and unique monitor range.

The DB2 monitor range can be integrated easily in tables and desks. Monitors rise and tilt with a silent, harmonious and elegant movement, sliding down into the table with the precision that Arthur Holm is renowned for.

Completely designed and furnished in anodised aluminium, the range offers a minimal and contemporary look. Aluminium is a durable surface, it is extremely resilient and it also dissipates heat. The anodised finish provides a soft, silky effect. The front double anti-reflection glass protects the screen, reduces the mirror effect, increases the contrast and shows natural transparent colours.

DB2 is powered by a low consumption video controller and has a new easy to read 2.2” LCD Interactive Set-Up Display (ISD). This allows a local and remote configuration, operation and troubleshooting, without removing the monitor from the furniture. The AHnet (RS-422) communication protocol has been updated and now includes the remote control of the monitor brightness, contrast and backlight.

When connected to the AH ERT interface, the assisted addressing system enables address configuration in an easy and convenient way by simply pressing a button. It includes an auto check feature for auto diagnose and internal protection functions, as well as preset speed and protection values (enabling a quick reset to the factory default values if required) and a USB port for local firmware upgrade.

The DB2 retractable monitors product range is available from 10” to 21,5″ with Full HD native resolution and 2 DVI, HDCP compliant inputs and in 23,8″ with 4K resolution.

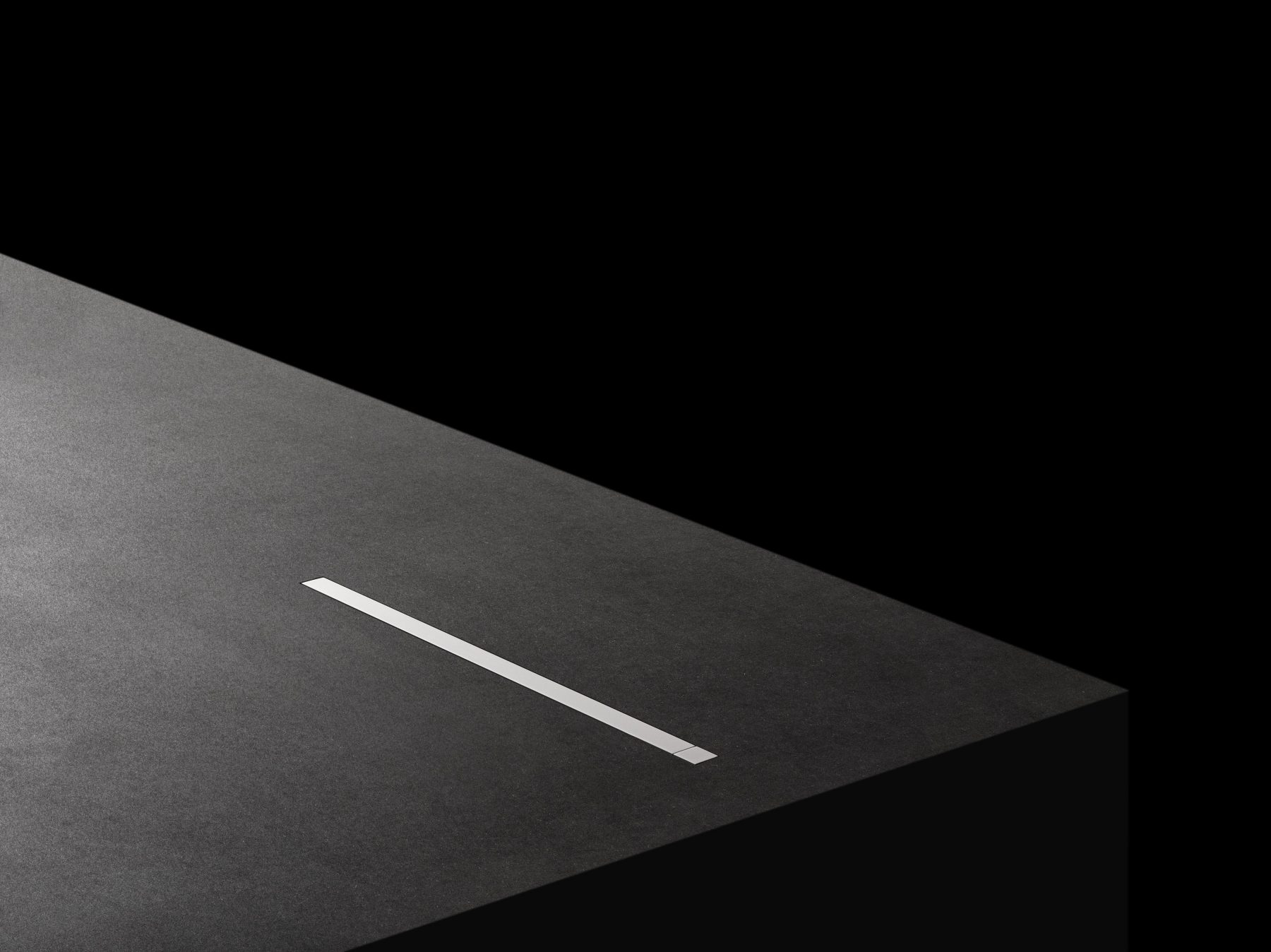

DB2 retractable monitor

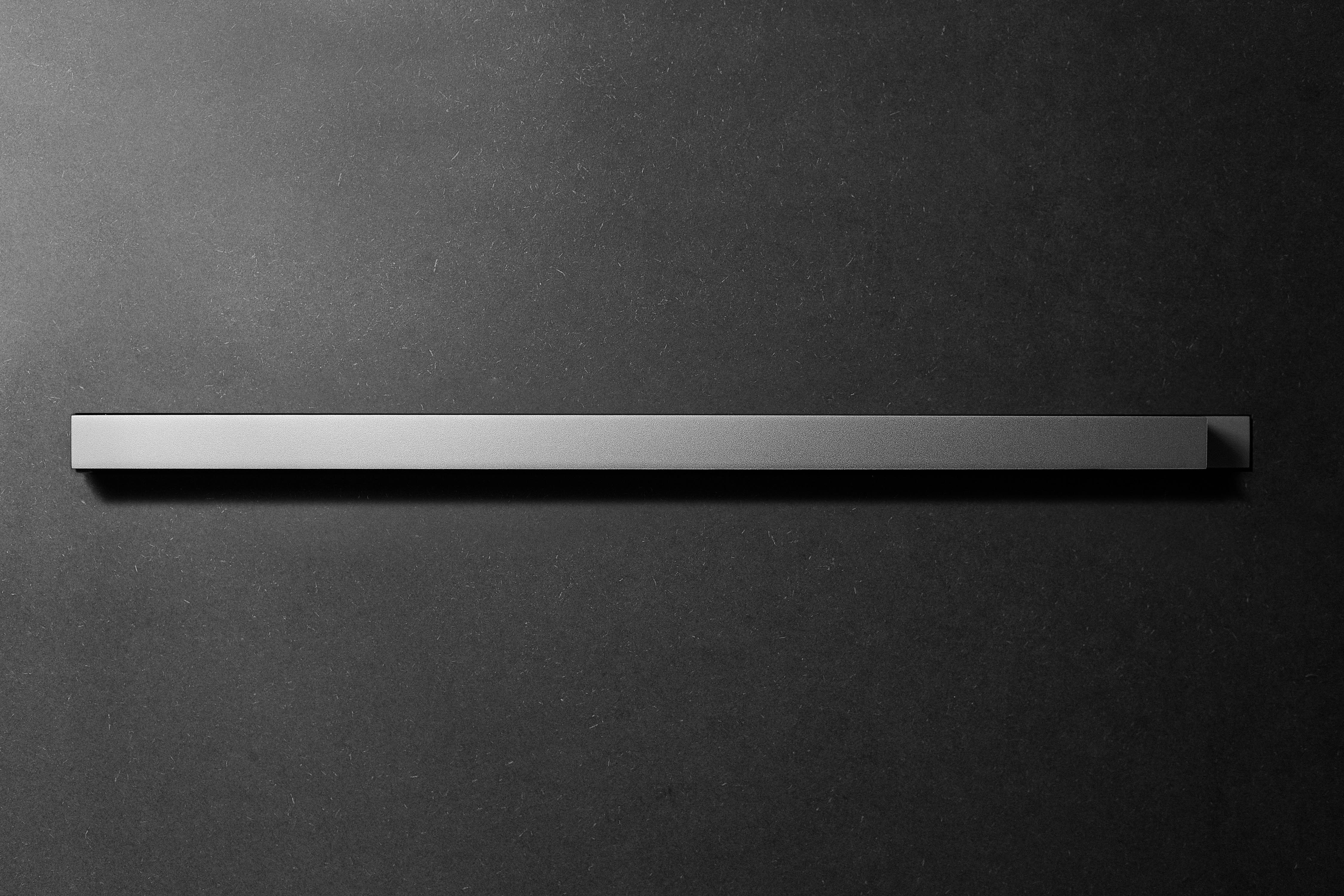

DB2 motorised retractable monitors

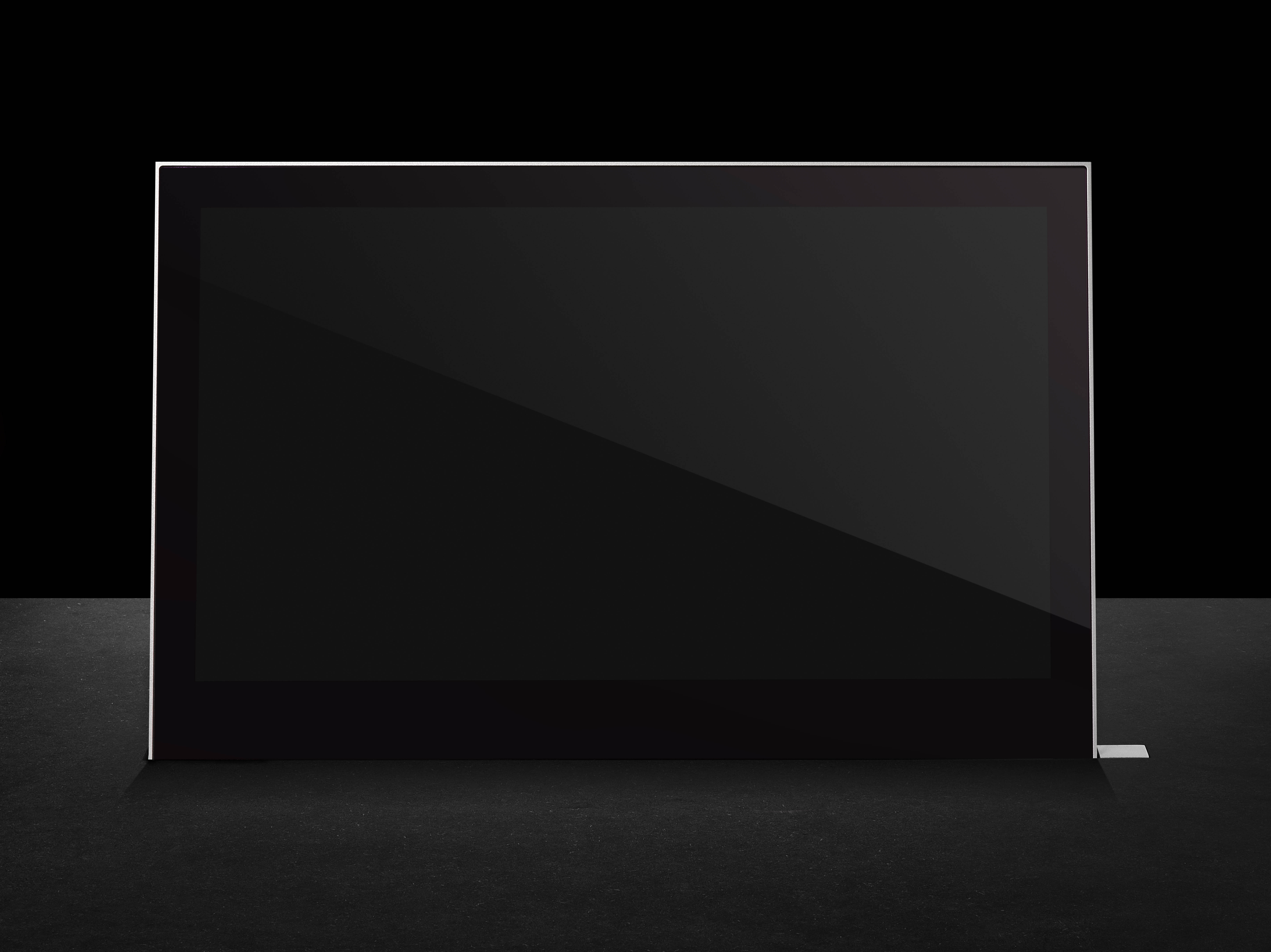

DB2 design monitor

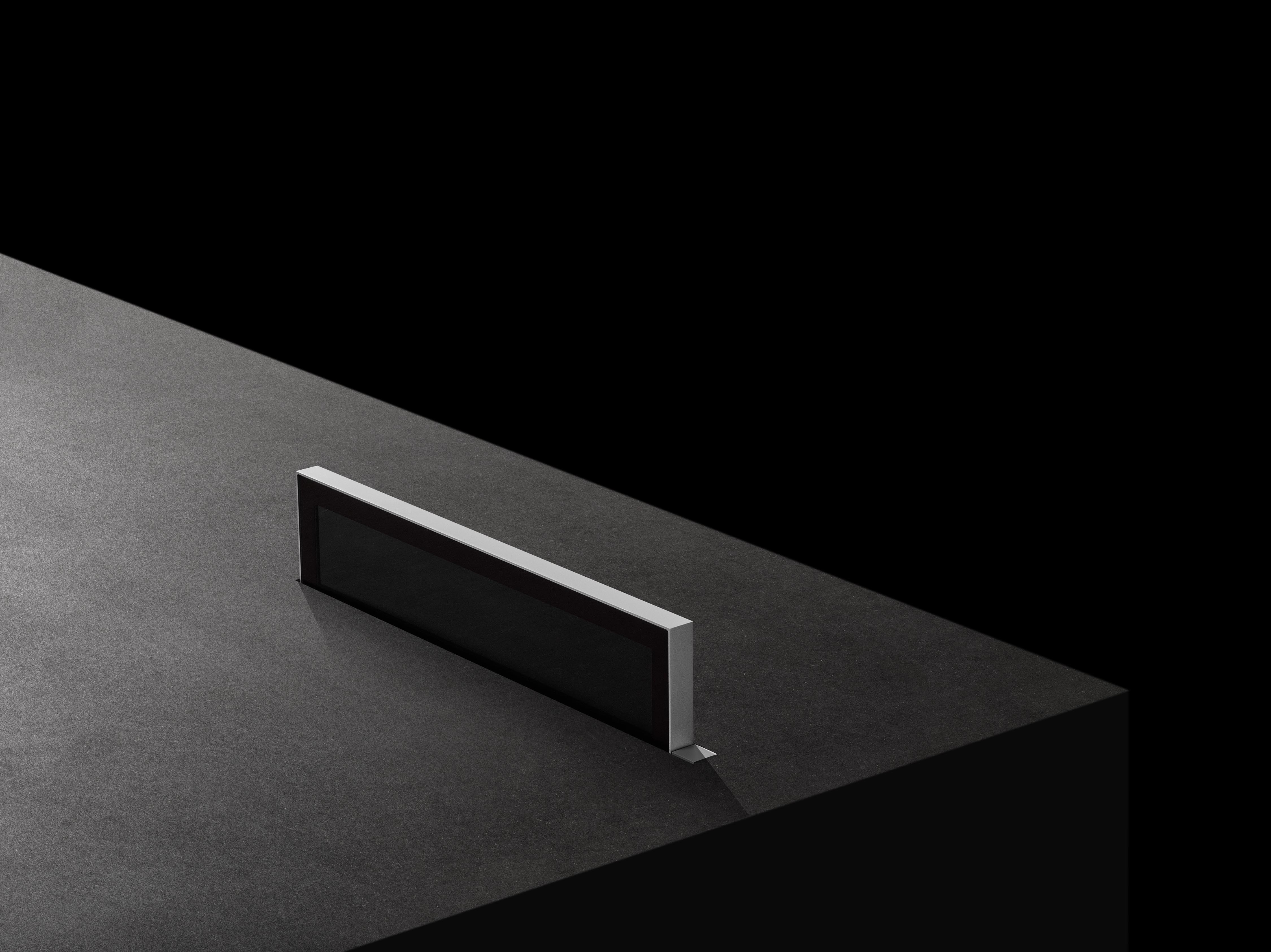

DB2 motorised retractable monitor

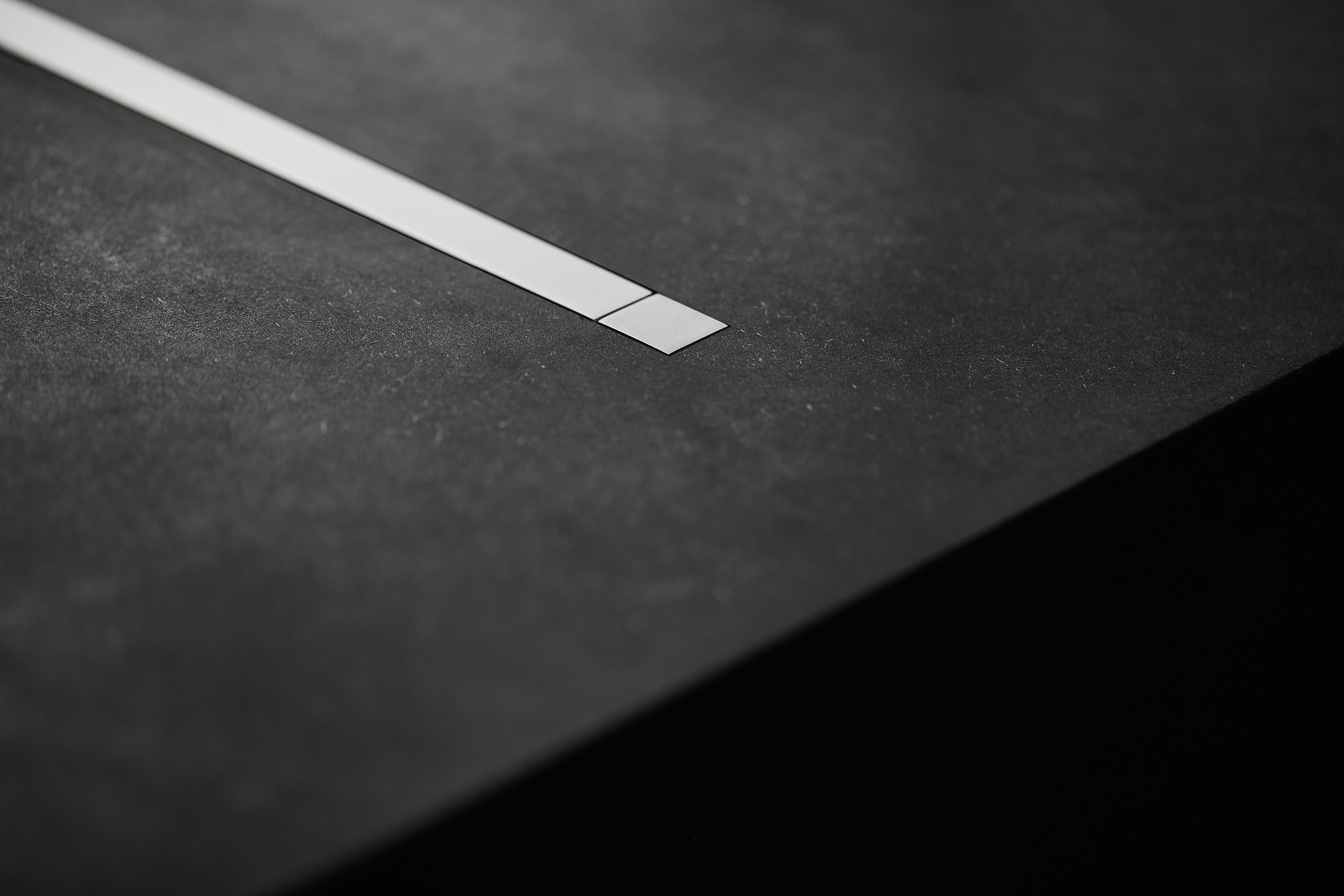

retractable design monitor
easy to integrate monitor
DB2 motorised retractable monitor

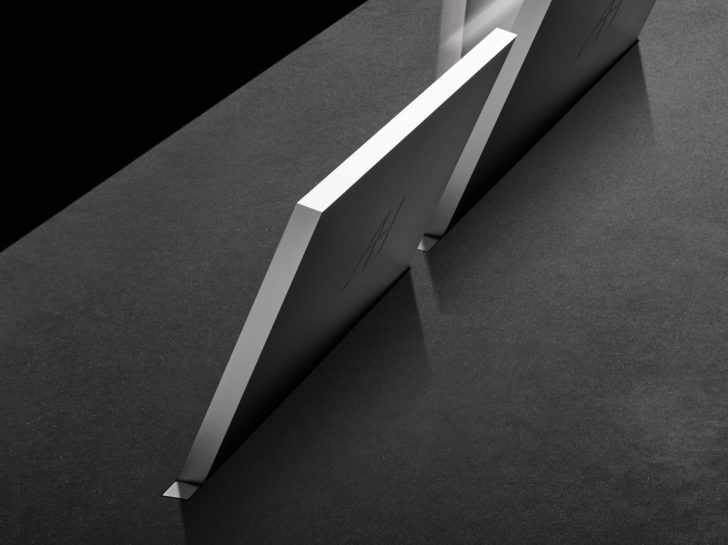

DB2 motorised retractable monitor with tilt adjustable up to 20º.

Options

Positions

DB2 range
AH10DB2
  • Retractable / 20º of adjustable inclination
  • 2 movements
  • 10″
  • Fully motorised
AH17DB2
  • Retractable / 20º of adjustable inclination
  • 2 movements
  • 17,3″
  • Fully motorised
Display
  • Size
  • FULL HD 17,3″ LED

  • Resolution
  • 1920 (h) x 1080 (v)

  • Brightness
  • 400 cd/m2

  • Contrast ratio
  • 600:1

  • Pixel
  • 0.1989 (h) x 0.1989 (v) mm

  • Viewing angle
  • 60º/80º (u/d) / 80º/80º (l/r)

  • Viewing area
  • 381.888 (h) x 214.812 (v) mm

  • LED backlight lifespan
  • 50.000 hrs

  • Response time
  • Tr 37 ms, Tf 3 ms

  • Temperature
  • Operating 0ºC – +40ºC

    Storage -20ºC – +60ºC

Materials
  • Frame
  • Anodised Aluminium

  • Glass
  • Anti-reflective 2 mm. black edged glass

Connectivity
  • Input signal
  • DVI-I (1 input) – HDCP Compliant

    DVI-D (1 input) – HDCP Compliant

  • RJ45 CAT5 (with loop)
  • Addressable RS422 monitor control by AHnet protocol

  • GPI (SubD9)
  • Up/Down control

AH22DB2
  • Retractable / 20º of adjustable inclination
  • 2 movements
  • 21,5″
  • Fully motorised
Display
  • Size
  • FULL HD 21,5″ LED

  • Resolution
  • 1920 (h) x 1080 (v)

  • Brightness
  • 250 cd/m2

  • Contrast ratio
  • 1000:1

  • Pixel
  • 0.247 (h) x 0.247 (v) mm

  • Viewing angle
  • 178º (v) / 178º (v)

  • Viewing area
  • 476.064 (h) x 267.786 (v) mm

  • LED backlight lifespan
  • 30.000 hrs

  • Response time
  • Tg-g 25 ms

  • Temperature
  • Operating 0ºC – +40ºC

    Storage -20ºC – +60ºC

Materials
  • Frame
  • Anodised Aluminium

  • Glass
  • Anti-reflective 2 mm. black edged glass

Connectivity
  • Input signal
  • DVI-I (1 input) – HDCP Compliant

    DVI-D (1 input) – HDCP Compliant

  • RJ45 CAT5 (with loop)
  • Addressable RS422 monitor control by AHnet protocol

  • GPI (SubD9)
  • Up/Down control

AH24DB24K
  • Retractable / 20º of adjustable inclination
  • 2 movements
  • 23.8″ 4K
  • Fully motorised
