Business Class

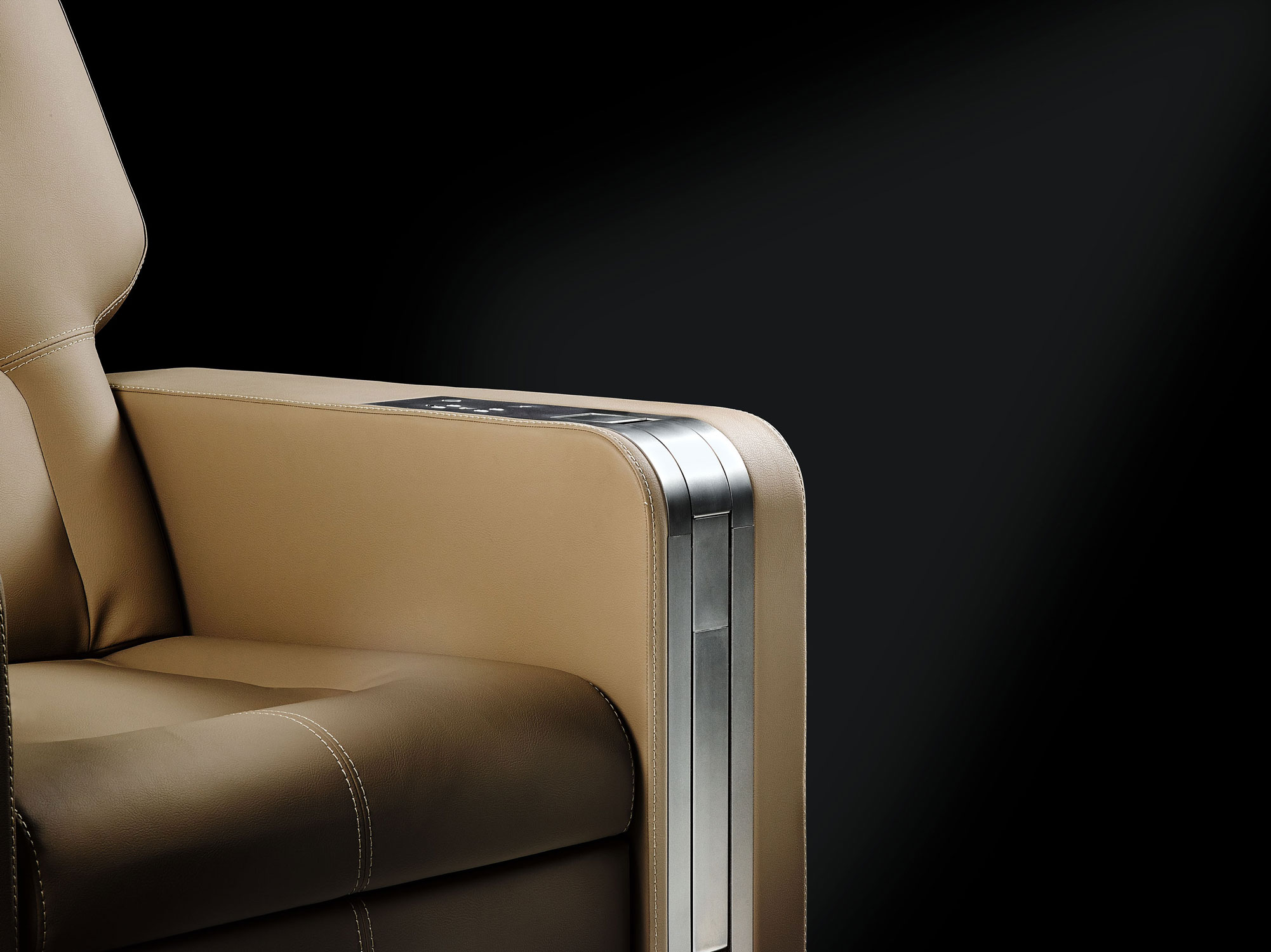

DynamicChairDisplay is a retractable motorized monitor to be integrated in chair armrests. The monitor is only visible when it is in use and it is safely stored in the armrest when not needed.

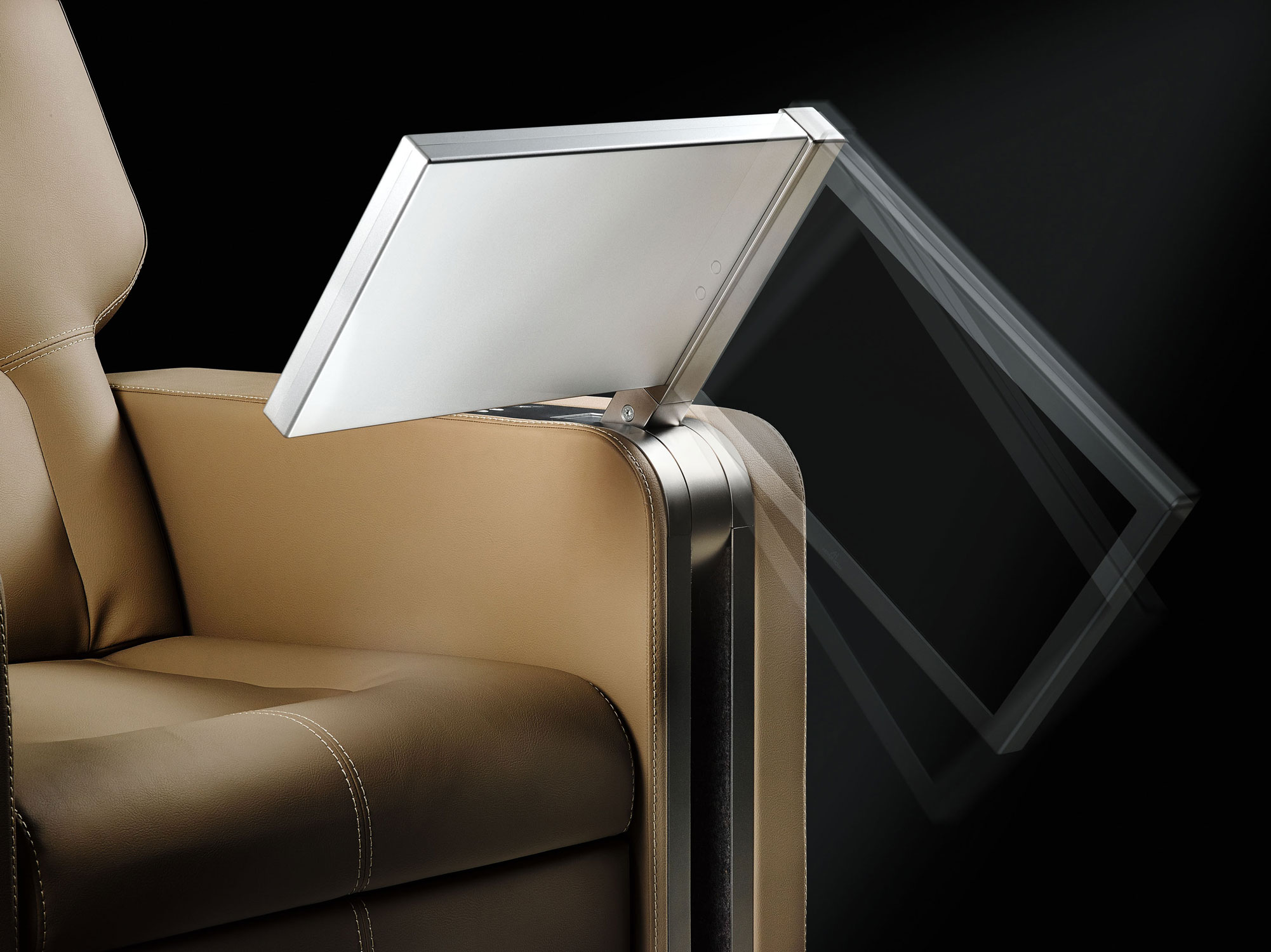

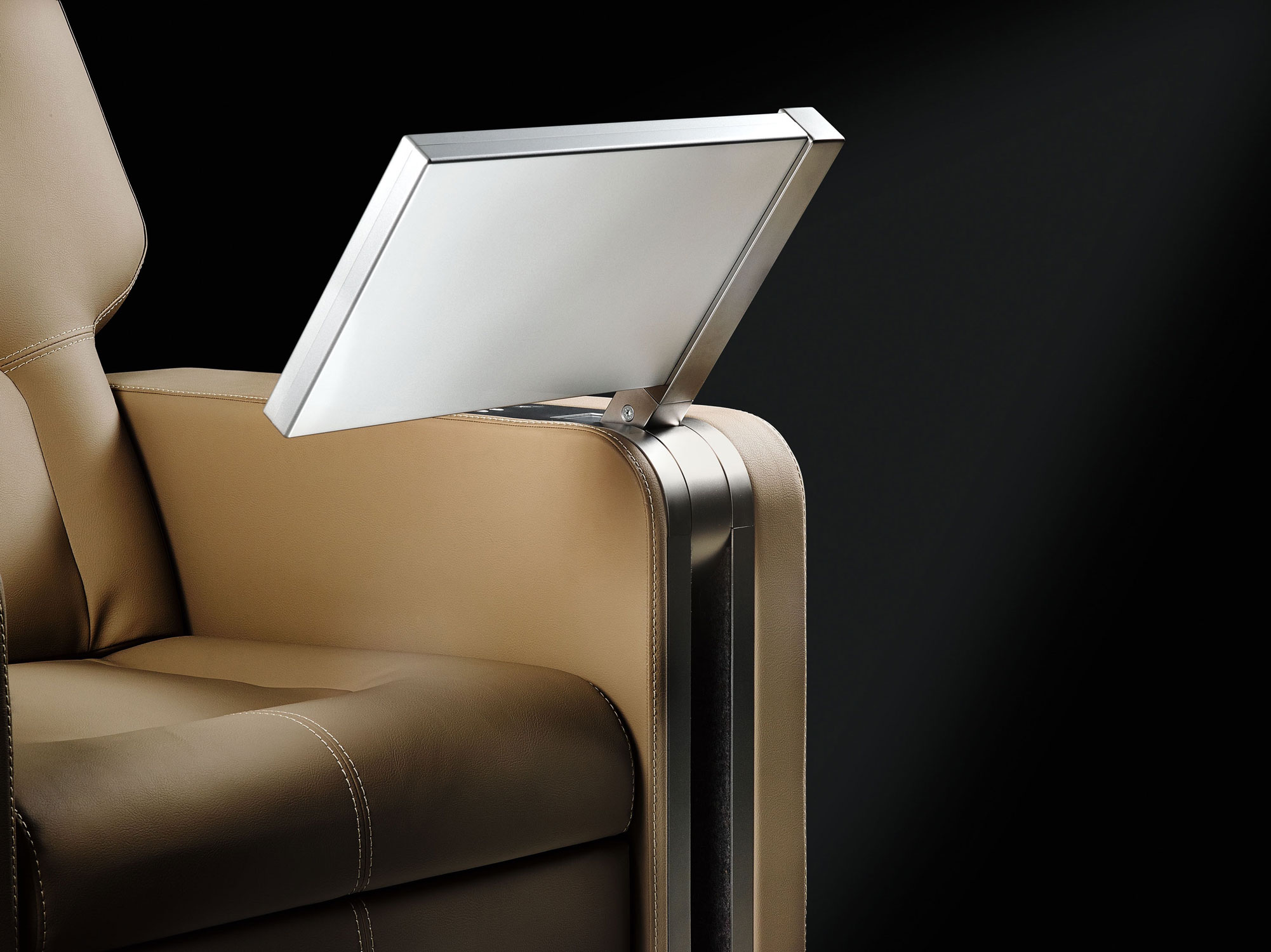

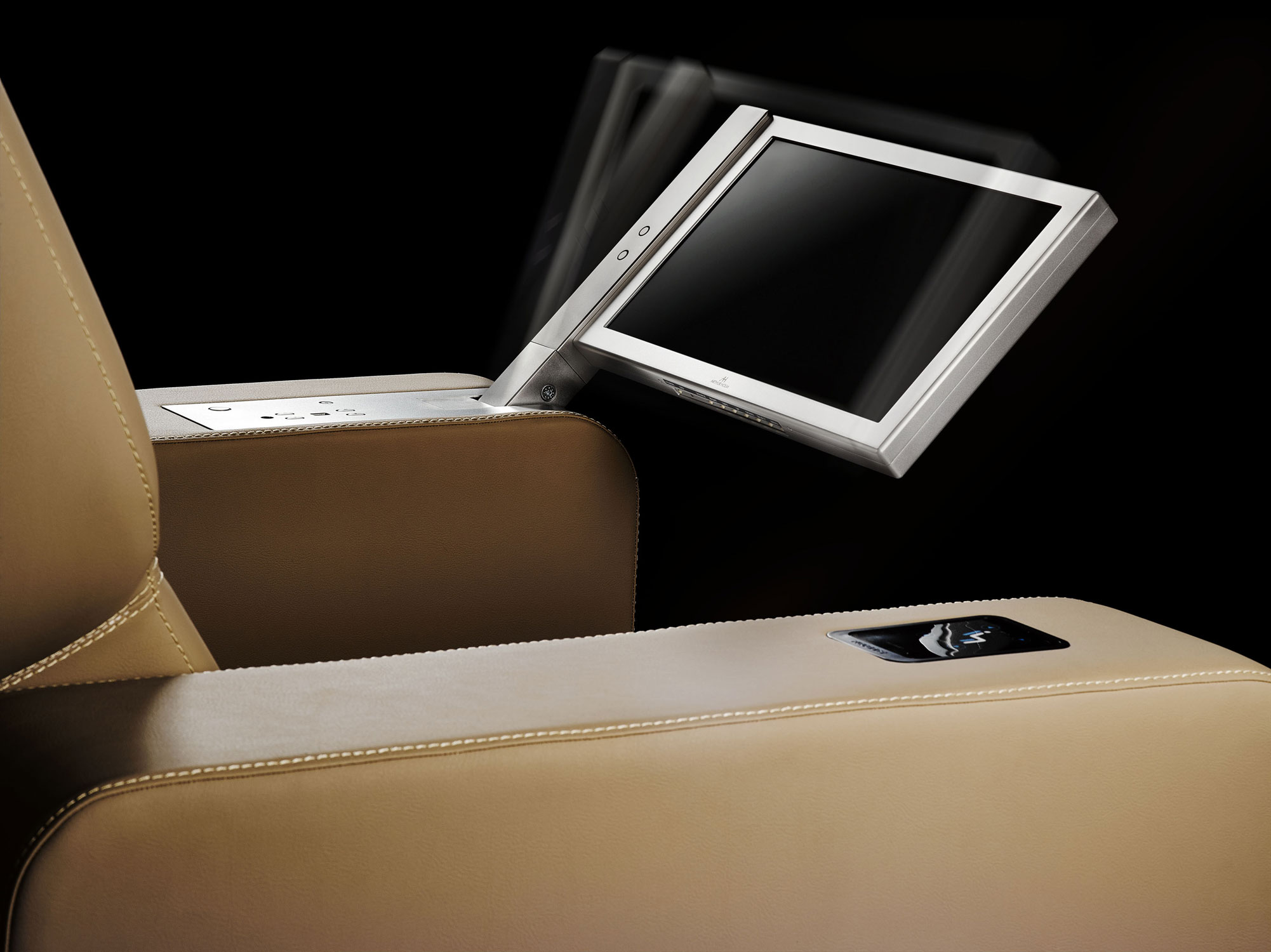

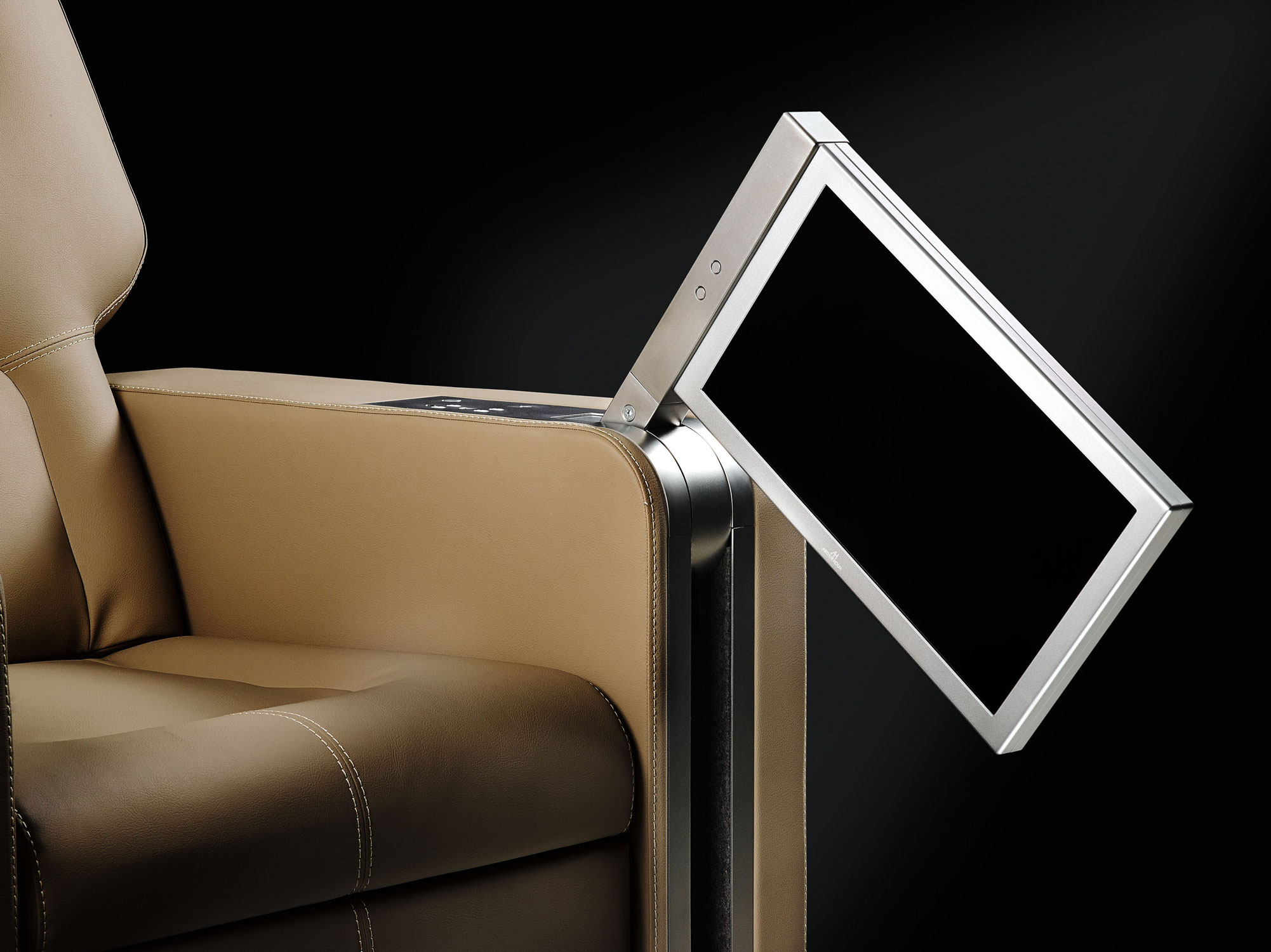

This elegant aluminum screen possess an automatic vertical extraction movement plus an additional manual rotation towards the user followed by a motorized tilt adjustment. The monitor housing is made of milled aluminum with anodized finish. Its mechanism is robust and silent and the whole solution is integrated in a compact block, being very simple to install. DynamicChairDisplay motorized retractable monitor for armrests is available in 15,6”.
Options
Positions
- Size
FULL HD 15.6” TFT Active Matrix, widescreen
- Resolution
1920 (h) x 1080 (v)
- Brightness
300 cd/m2
- Contrast ratio
800:1
- Pixel
0.1792 (h) x 0.1792 (v) mm
- Viewing angle
65°/80° (u/d) / 80°/80° (l/r)
- Viewing area
344.16 (h) x 193.59 (v) mm
- LED backlight lifespan
50.000 hrs
- Response time
Tr + Tf 30 ms
- Temperature
Operating 0ºC — +40ºC
Storage -20ºC — +60ºC
- Cabinet
Solid aluminium monitor housing with natural anodised finish
- Input signal
DVI-I (1 input) – HDCP Compliant
DVI-D (1 input) – HDCP Compliant
- RJ45 CAT5 (with loop)
Addressable RS422 monitor control by AHnet protocol
- GPI (SubD9)
Up/Down control
