Dynamic2
Motorised monitors to integrate in furniture

Dynamic2

Dynamic2 monitors offer a timeless, classic and discreet design with squared edges. Dynamic2 models are elegant monitors built from a solid anodised aluminium block and have an extremely swift yet silent lift system. They have a vertical motorised movement with an automatic 20° tilting movement to ensure the best ergonomics, visibility and viewing angle. This automatic tilt system provides a fast, silent and robust response, offering a highly reliable and maintenance-free solution.

The Dynamic2 range is available in different sizes from 12″ to 22″ and monitors can be customised with single or double retractable microphones, speakers, voting systems, USB connectors and camera. It is also possible to add a touch screen and the aluminium housing can be customised in different colours. Monitors are equipped with a safety system, which stops the movements in case of resistance detection. They are remotely controllable and diagnosable in a simple and cost effective way through the ERT interfaces.

customisable monitor
Dynamic2 motorised monitors
Dynamic2 design monitor
Dynamic2 motorised retractable monitor
Retractable design monitor
motorised monitor with vertical movement
Dynamic2 motorised design monitors

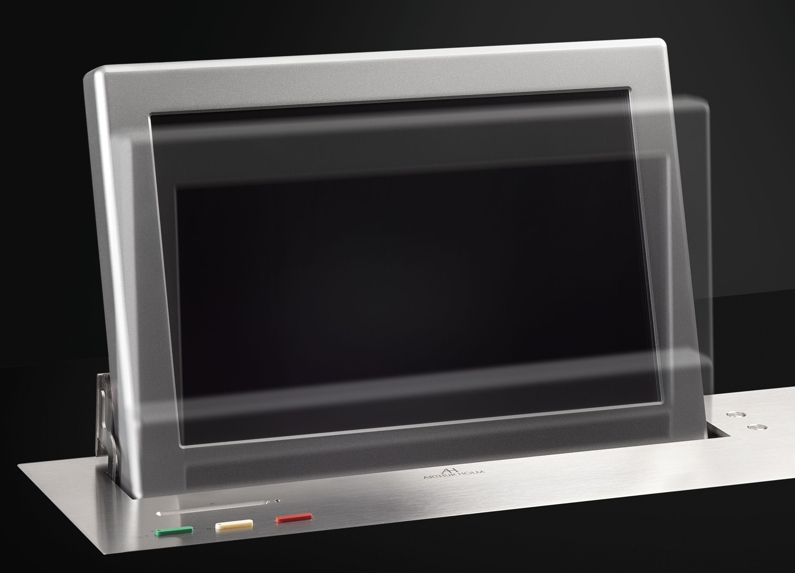

Dynamic2 motorised monitor with vertical movement and automatic 20° tilt.

Options

Positions

Dynamic2 range
AH12D216A
  • Retractable / Automatic 20° inclination
  • 2 movements
  • 12,1”
  • Widescreen
  • Fully motorised
Display
  • Size
  • 12.1” TFT Active Matrix, widescreen

  • Resolution
  • 1280 (h) x 800 (v)

  • Brightness
  • 400 cd/m2

  • Contrast ratio
  • 1000:1

  • Pixel
  • 0.204 (h) x 0.204 (v) mm

  • Viewing angle
  • 88°/88° (u/d) / 88°/88° (l/r)

  • Viewing area
  • 261.12 (h) x 163.2 (v) mm

  • LED backlight lifespan
  • 50.000 hrs

  • Response time
  • Tr 15 ms, Tf 10 ms

  • Temperature
  • Operating 0ºC — +40ºC
    Storage -20ºC — +60ºC

Materials
  • Frame
  • Anodised Aluminium

  • Cover plate
  • Brushed stainless steel. Optional matte finish, or can be veneered to match the furniture

Connectivity
  • Input signal
  • DVI-I (1 input) – HDCP Compliant
    DVI-D (1 input) – HDCP Compliant

  • RJ45 CAT5 (with loop)
  • Addressable RS422 monitor control by AHnet protocol

  • GPI (SubD9)
  • Up/Down control

AH15D2HDA
  • Retractable / Automatic 20° inclination
  • 2 movements
  • 15,6”
  • Full HD
  • Widescreen
  • Fully motorised
Display
  • Size
  • FULL HD 15.6” TFT Active Matrix, widescreen

  • Resolution
  • 1920 (h) x 1080 (v)

  • Brightness
  • 400 cd/m2

  • Contrast ratio
  • 1500:1

  • Pixel
  • 0.1792 (h) x 0.1792(v) mm

  • Viewing angle
  • 85°/85° (u/d) / 85°/85° (l/r)

  • Viewing area
  • 344.16 (h) x 193.59 (v) mm

  • LED backlight lifespan
  • 70.000 hrs

  • Response time
  • Tr + Tf =35 ms

  • Temperature
  • Operating 0ºC — +40ºC
    Storage -20ºC — +60ºC

Materials
  • Frame
  • Anodised Aluminium

  • Cover plate
  • Brushed stainless steel. Optional matte finish, or can be veneered to match the furniture

Connectivity
  • Input signal
  • DVI-I (1 input) – HDCP Compliant
    DVI-D (1 input) – HDCP Compliant

  • RJ45 CAT5 (with loop)
  • Addressable RS422 monitor control by AHnet protocol

  • GPI (SubD9)
  • Up/Down control

AH17D2HDA
  • Retractable / Automatic 20° inclination
  • 2 movements
  • 17,3”
  • Full HD
  • Widescreen
  • Fully motorised
Display
  • Size
  • FULL HD 17.3” TFT Active Matrix, widescreen

  • Resolution
  • 1920 (h) x 1080 (v)

  • Brightness
  • 400 cd/m2

  • Contrast ratio
  • 600:1

  • Pixel
  • 0.1989 (h) x 0.1989 (v) mm

  • Viewing angle
  • 60°/80° (u/d) / 80°/80° (l/r)

  • Viewing area
  • 381.888 (h) x 214.812 (v) mm

  • LED backlight lifespan
  • 50.000 hrs

  • Response time
  • Tr 37 ms, Tf 3 ms

  • Temperature
  • Operating 0ºC — +40ºC
    Storage -20ºC — +60ºC

Materials
  • Frame
  • Anodised Aluminium

  • Cover plate
  • Brushed stainless steel. Optional matte finish, or can be veneered to match the furniture

Connectivity
  • Input signal
  • DVI-I (1 input) – HDCP Compliant
    DVI-D (1 input) – HDCP Compliant

  • RJ45 CAT5 (with loop)
  • Addressable RS422 monitor control by AHnet protocol

  • GPI (SubD9)
  • Up/Down control

AH19D2HDA
  • Retractable / Automatic 20° inclination
  • 2 movements
  • 18,5”
  • Full HD
  • Widescreen
  • Fully motorised
Display
  • Size
  • FULL HD 18,5” TFT Active Matrix

  • Resolution
  • 1920 (h) x 1080 (v)

  • Brightness
  • 400 cd/m2

  • Contrast ratio
  • 1500:1

  • Pixel
  • 0.213 (h) x 0.213 (v) mm

  • Viewing angle
  • 85°/85° (u/d) / 85°/85° (l/r)

  • Viewing area
  • 408.96 (h) x 230.04 (v) mm

  • LED backlight lifespan
  • 50.000 hrs

  • Response time
  • Tr + Tf = 35 ms

  • Temperature
  • Operating 0ºC — +40ºC
    Storage -20ºC — +60ºC

Materials
  • Frame
  • Anodised Aluminium

  • Cover plate
  • Brushed stainless steel. Optional matte finish, or can be veneered to match the furniture

Connectivity
  • Input signal
  • DVI-I (1 input) – HDCP Compliant
    DVI-D (1 input) – HDCP Compliant

  • RJ45 CAT5 (with loop)
  • Addressable RS422 monitor control by AHnet protocol

  • GPI (SubD9)
  • Up/Down control

AH22D216A
  • Retractable / Automatic 20° inclination
  • 2 movements
  • 21,5”
  • Full HD
  • Widescreen
  • Fully motorised
Display
  • Size
  • FULL HD 21.5” TFT Active Matrix, widescreen

  • Resolution
  • 1920 (h) x 1080 (v)

  • Brightness
  • 300 cd/m2

  • Contrast ratio
  • 1000:1

  • Pixel
  • 0.247 (h) x 0.247 (v) mm

  • Viewing angle
  • 178° (v) / 178° (h)

  • Viewing area
  • 476.064 (h) x 267.786 (v) mm

  • LED backlight lifespan
  • 30.000 hrs

  • Response time
  • Tg-g 25 ms

  • Temperature
  • Operating 0ºC — +40ºC
    Storage -20ºC — +60ºC

Materials
  • Frame
  • Anodised Aluminium

  • Cover plate
  • Brushed stainless steel. Optional matte finish, or can be veneered to match the furniture

Connectivity
  • Input signal
  • DVI-I (1 input) – HDCP Compliant
    DVI-D (1 input) – HDCP Compliant

  • RJ45 CAT5 (with loop)
  • Addressable RS422 monitor control by AHnet protocol

  • GPI (SubD9)
  • Up/Down control
