Motorized Monitor – Dynamic3Reverse
Motorized monitors for furniture integration

Motorized Monitor – Dynamic3Reverse

A view on the room

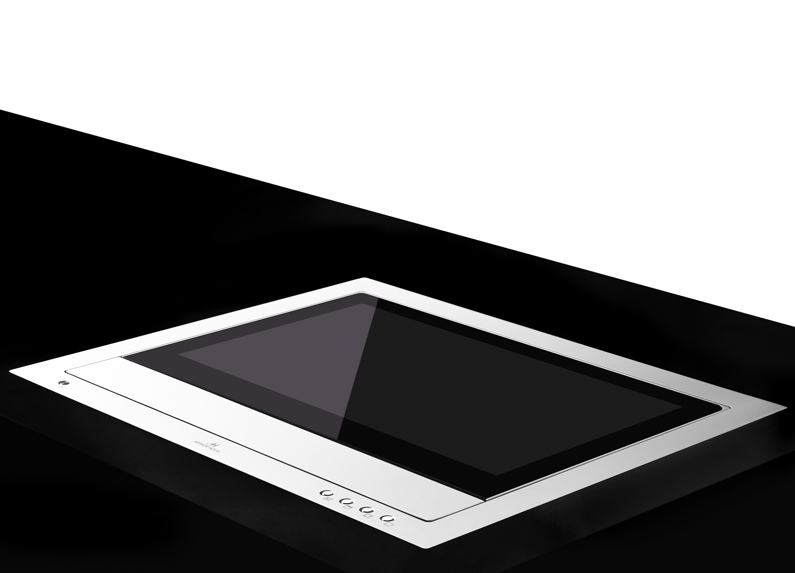

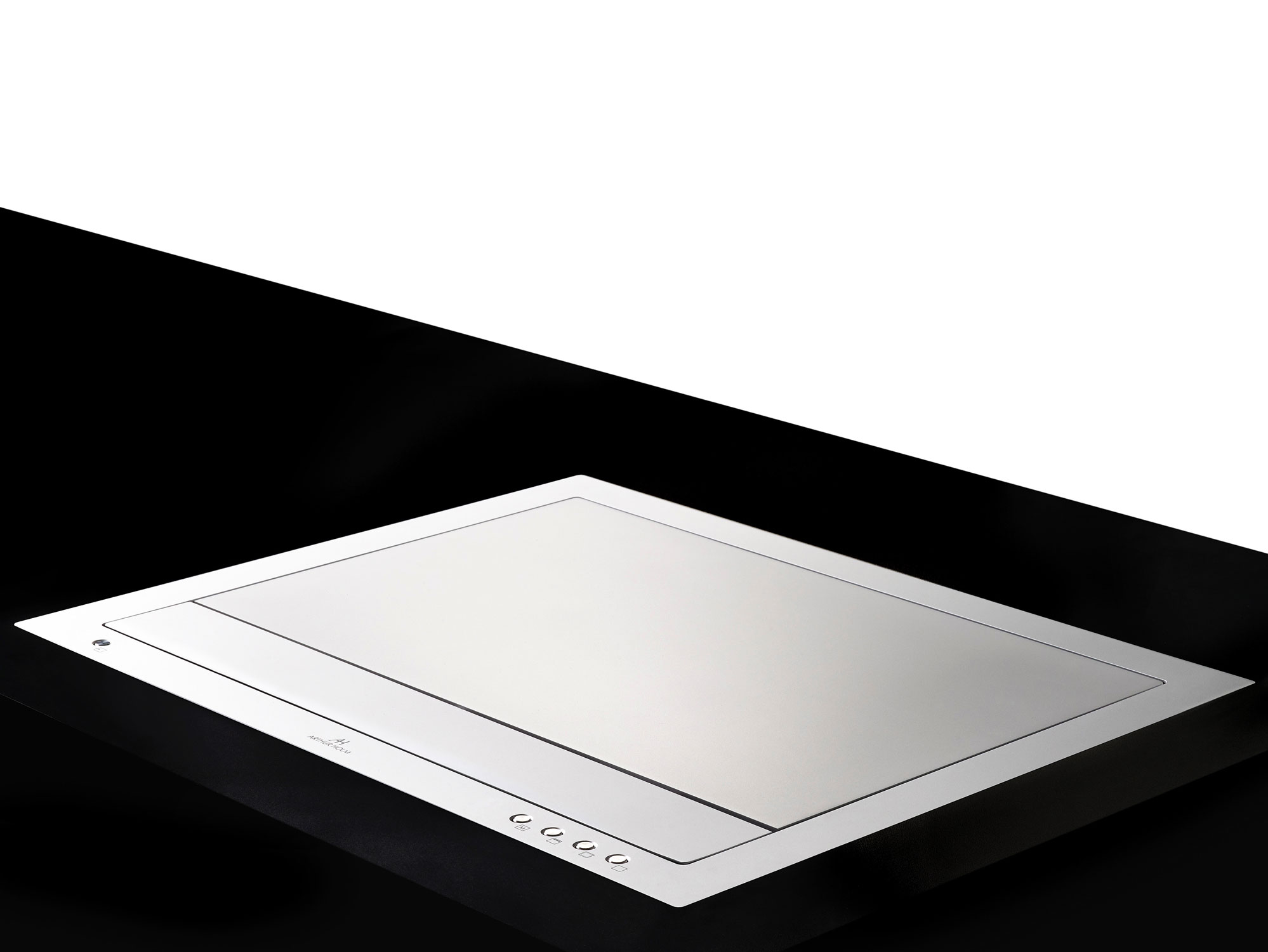

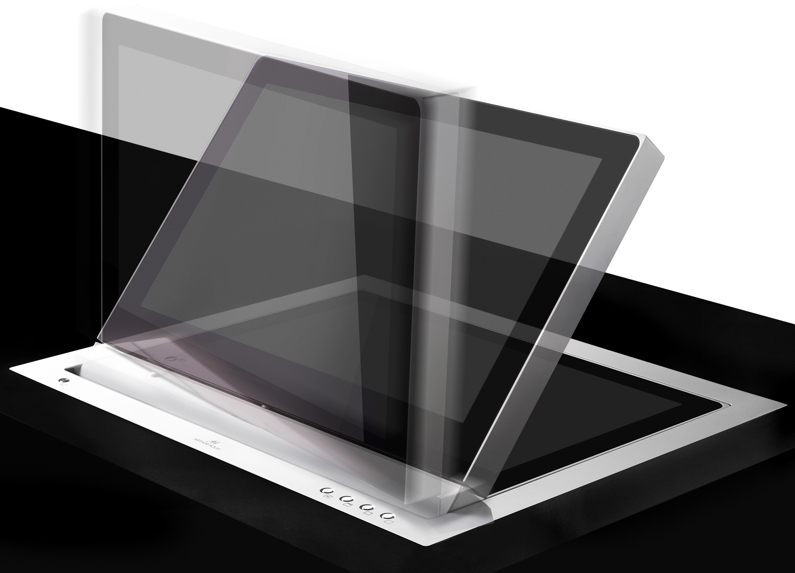

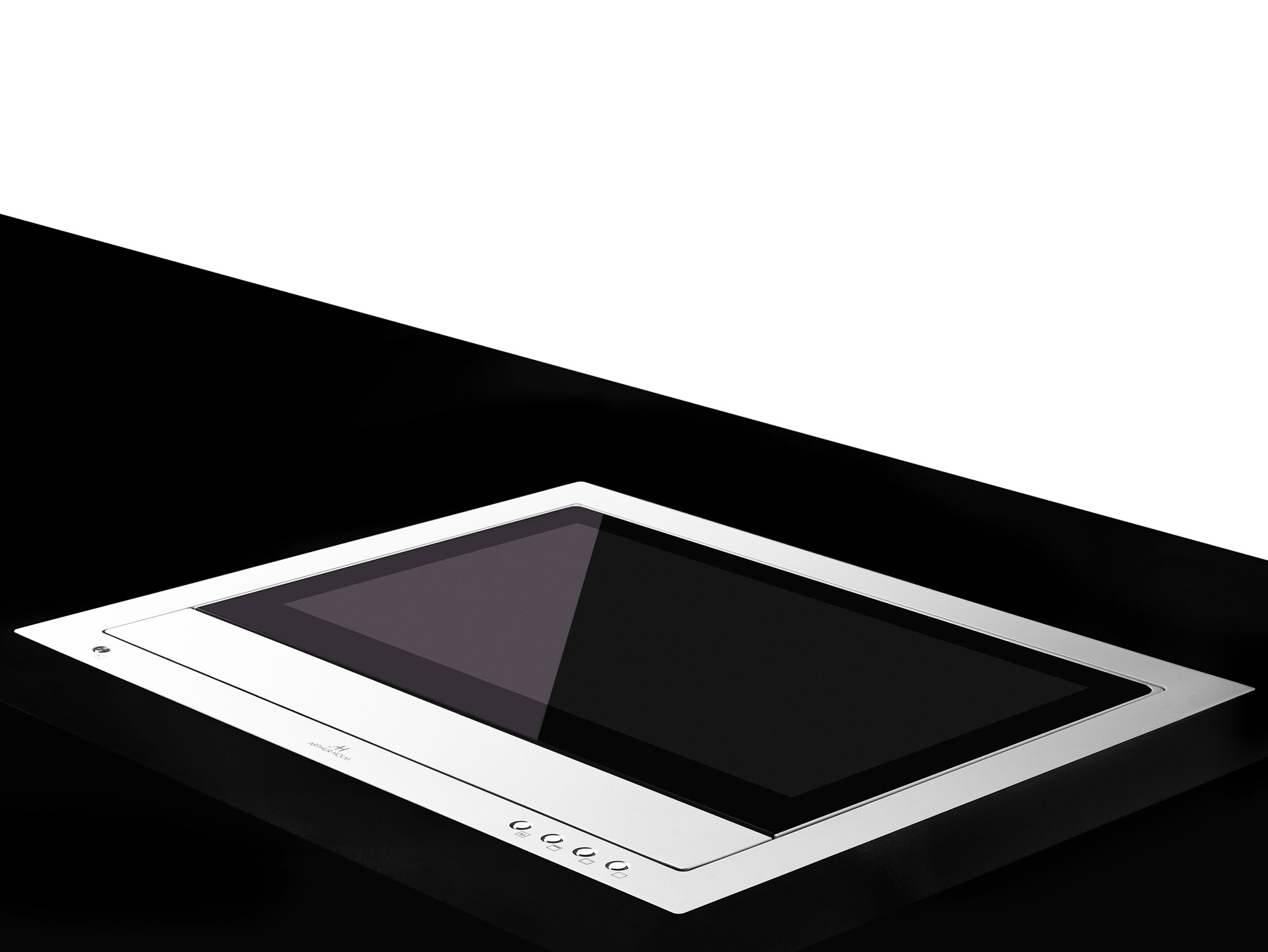

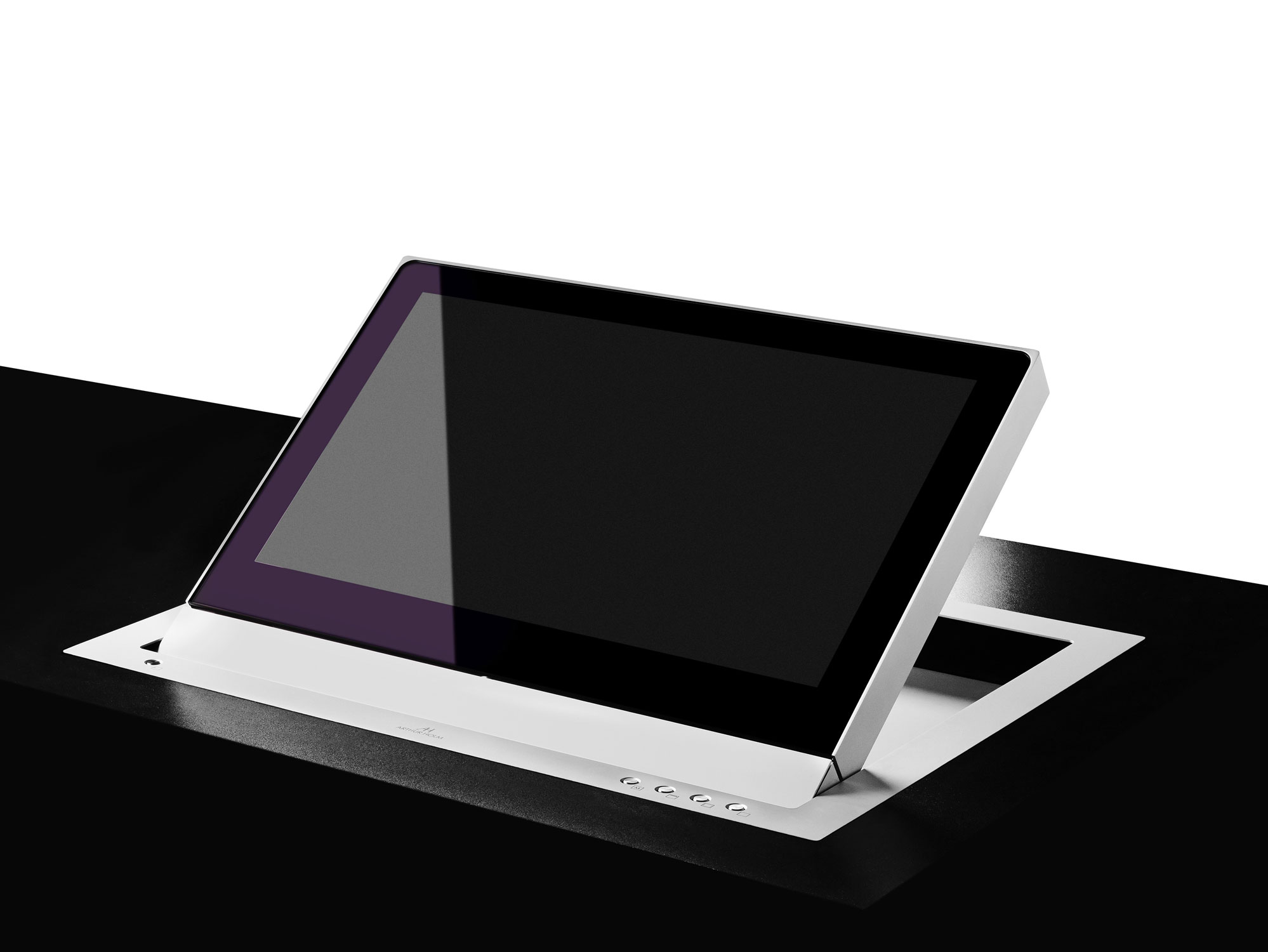

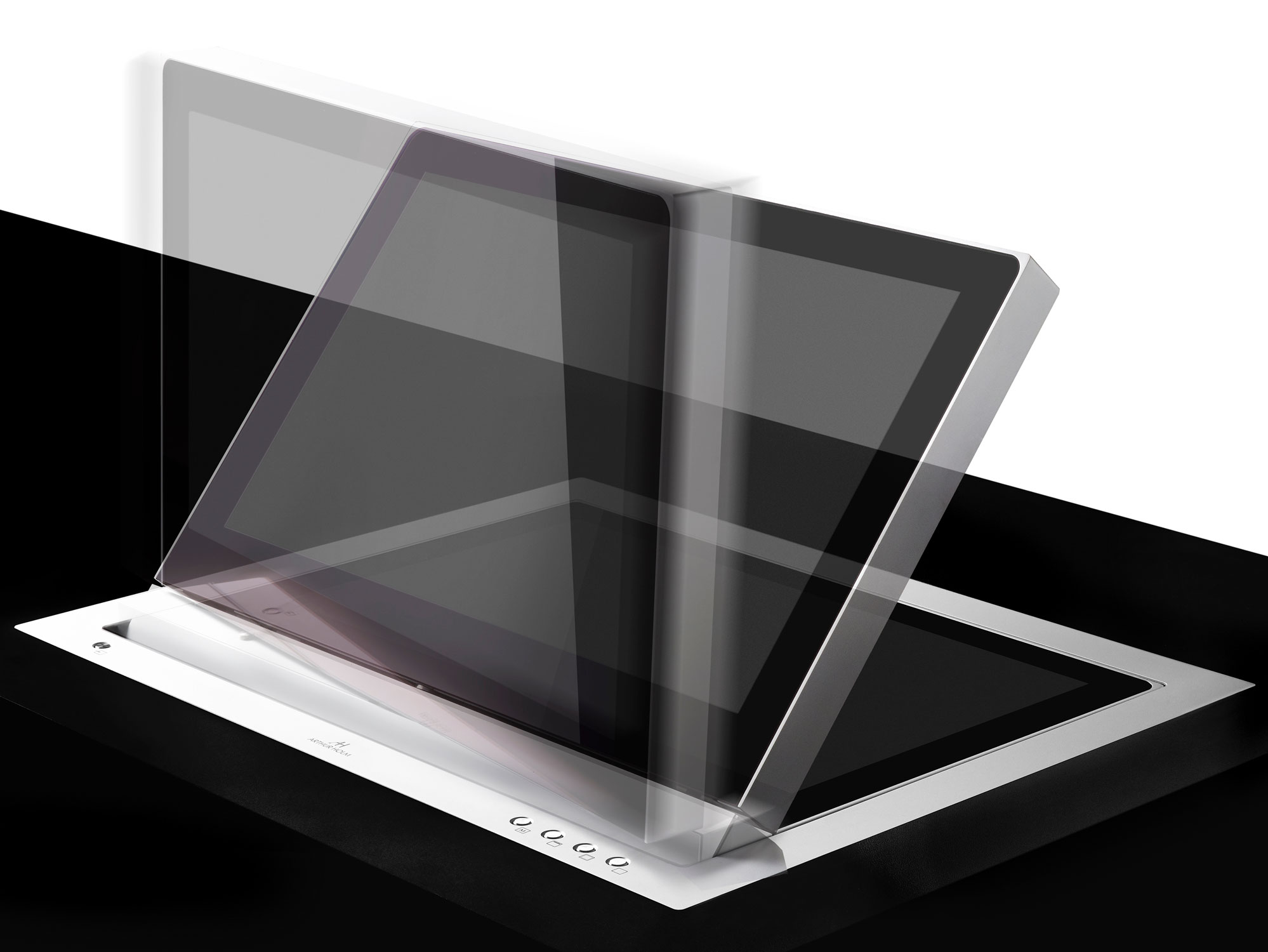

Dynamic3Reverse is a unique electrically foldable 18,5″ touch screen monitor with horizontal and vertical working positions. Its tilt angle can be adjusted to any point, from flush with the desk up to 90°, and it rotates to be folded. The back side of the screen can be veneered to match the desk finish perfectly.

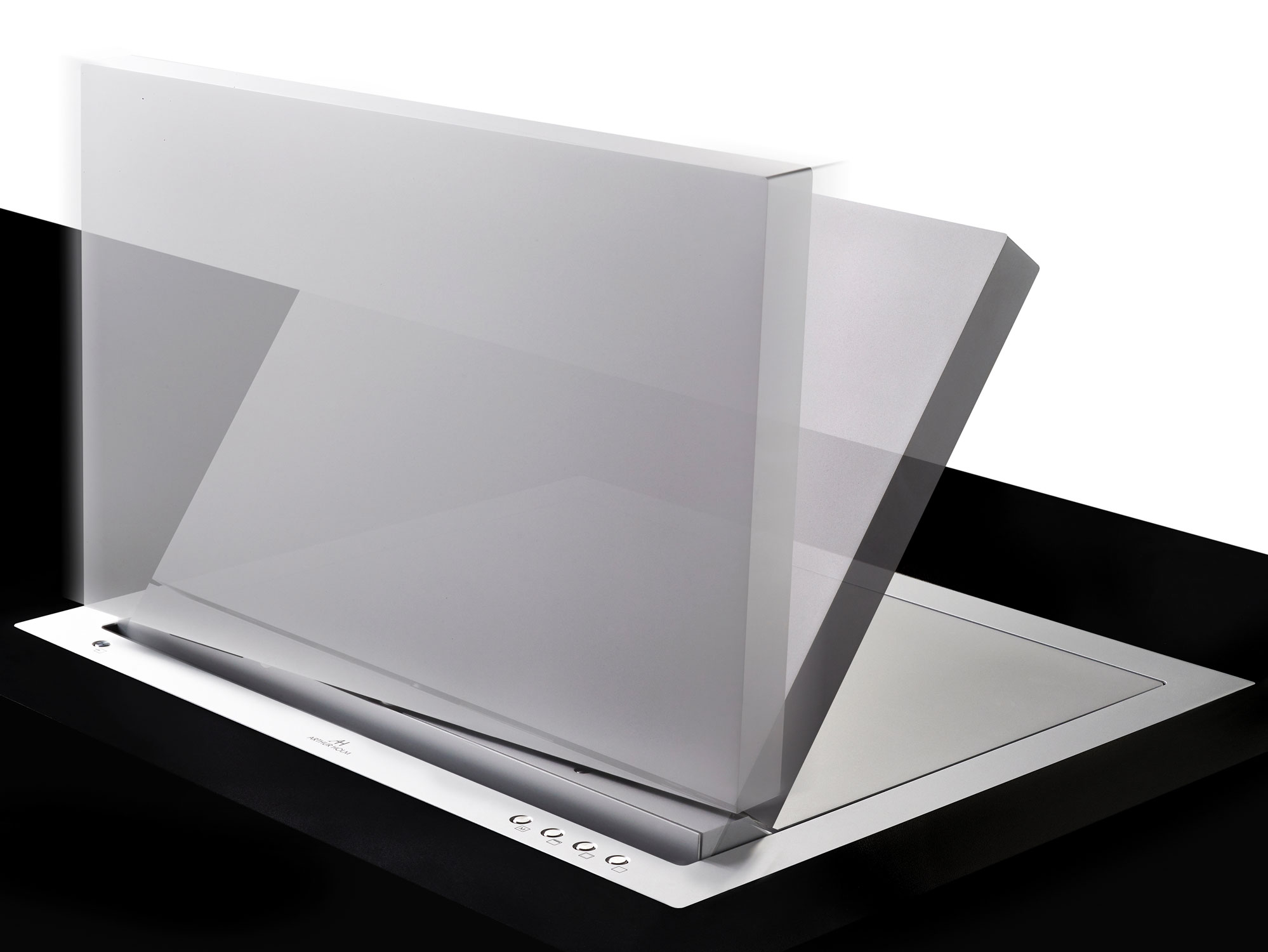

The monitor has an Interactive Setup Display which provides exclusive features for remote control and adjustments. It includes HDCP compliant DVI-I and DVI-D inputs and it is extremely compact. It is ideal for interactive meetings in conference and board rooms. It can be closed with the screen facing down, so it remains protected and the table can be used for other applications. Its fully adjustable tilt angle allows the meeting audience to have a perfect view. It is also an ideal solution for auditoriums or lecture halls. The tilt position can be memorized to be selected afterwards.

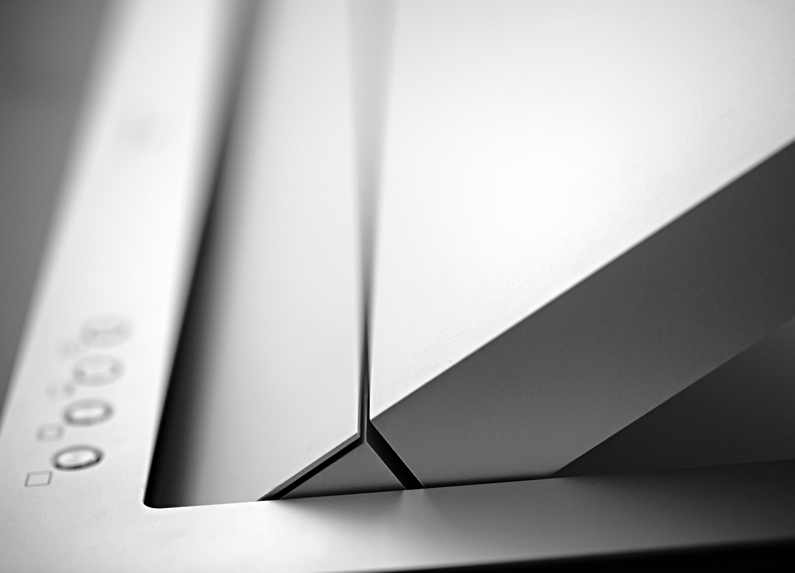

The Dynamic3Reverse motorized design monitor is built in a solid aluminum block with a black edged glass. It is robust, compact and very elegant, as well as silent and very easy to install.

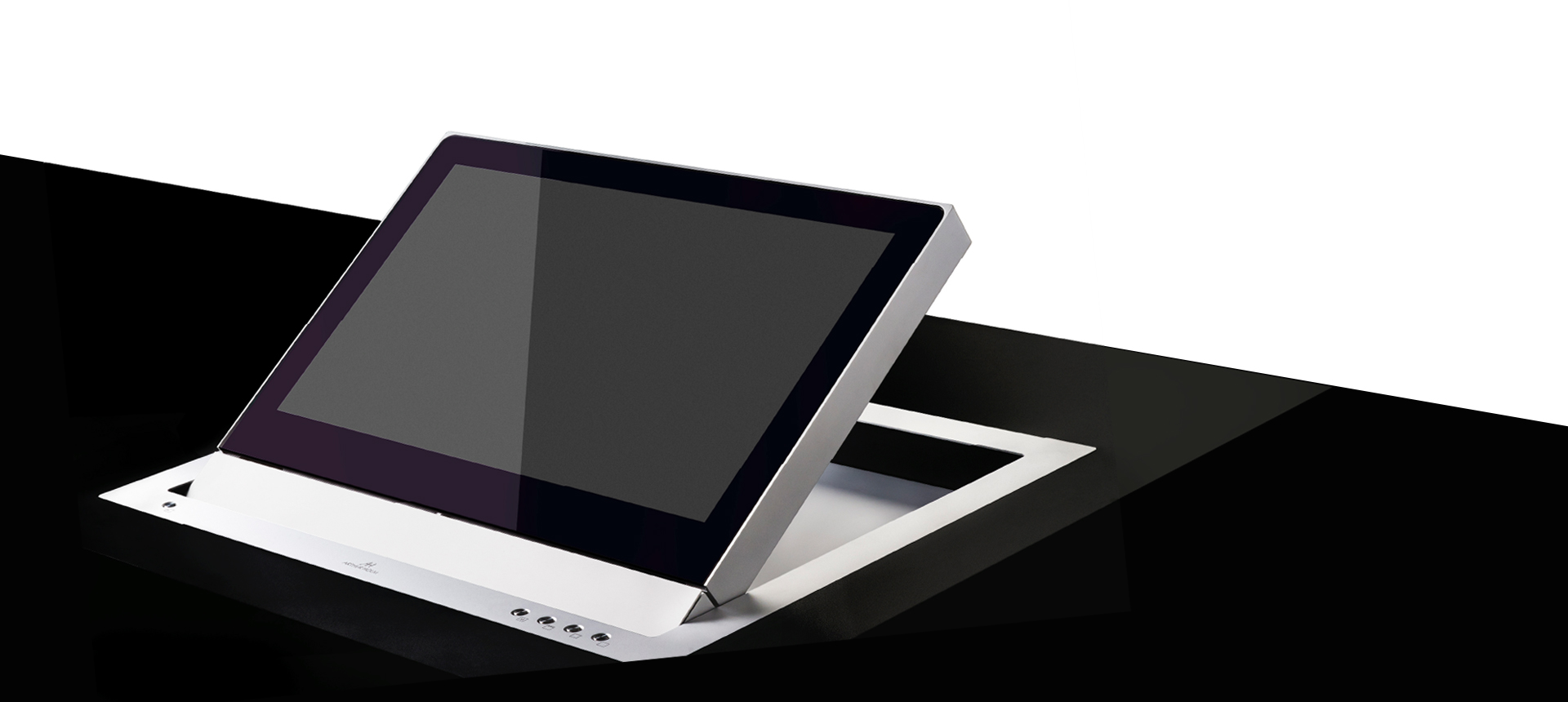

Dynamic3Reverse motorized monitor

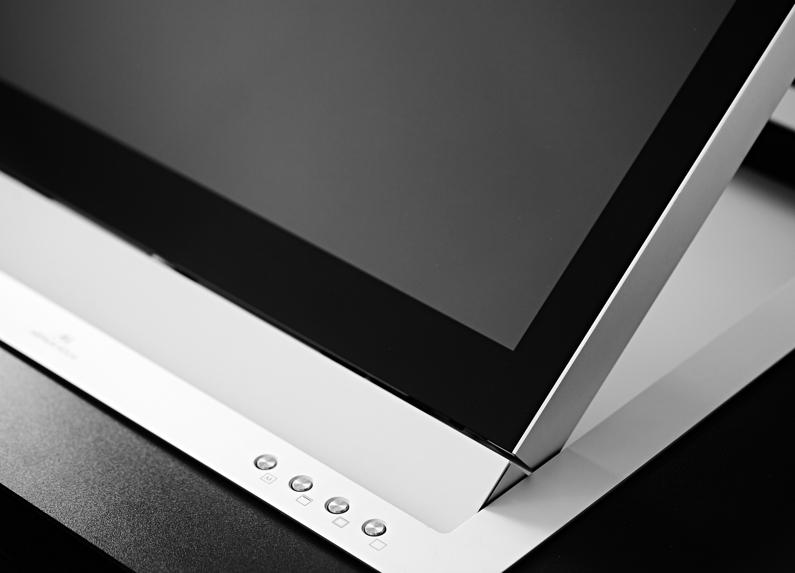

Electrically foldable monitor

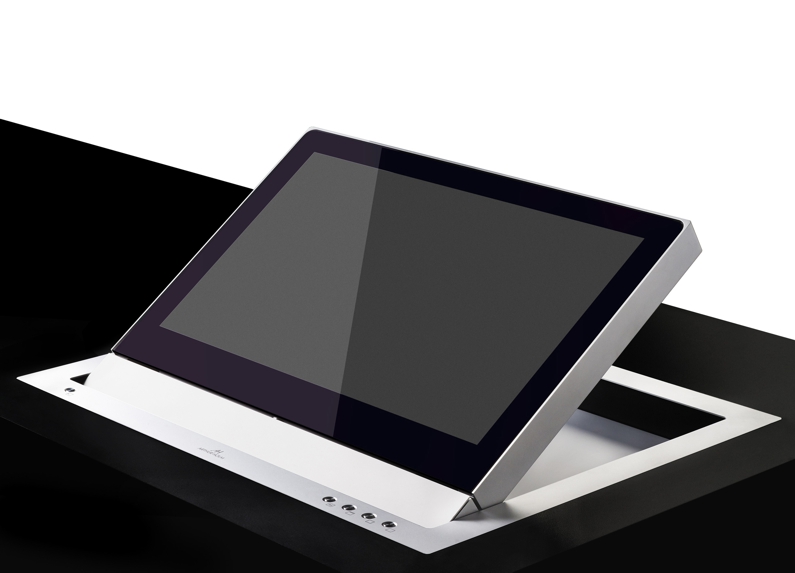

Dynamic3Reverse design monitor
Dynamic3Reverse foldable monitor
Touch screen monitor
monitor with horizontal and vertical working positions
Dynamic3Reverse motorized monitor

Dynamic3Reverse is a unique electrically foldable 18,5″ monitor with touch screen and horizontal and vertical working positions.


Dynamic3Reverse range
  • Foldable facing up/rotary
  • 3 movements
  • 18,5”
  • Full HD
  • Fully motorized
  • Size
  • FULL HD 18.51” TFT Active Matrix, widescreen

  • Resolution
  • 1920 (h) x 1080 (v)

  • Brightness
  • 400 cd/m2

  • Contrast ratio
  • 1500:1

  • Pixel
  • 0.213(h) x 0.213(v) mm

  • Viewing angle
  • 85°/85° (u/d) / 85°/85° (l/r)

  • Viewing area
  • 408.96(h) x 230.04(v) mm

  • LED backlight lifespan
  • 50.000 hrs

  • Response time
  • Tr + Tf =3.5 ms

  • Temperature
  • Operating 0ºC — +40ºC
    Storage -20ºC — +60ºC

  • Cabinet & cover plate
  • Monitor housing milled out of solid aluminum with an anodized surface finish. The glass is double sided anti-reflective 3 mm. black edged.

  • Input signal
  • DVI-I (1 input) – HDCP Compliant
    DVI-D (1 input) – HDCP Compliant

  • RJ45 CAT5 (with loop)
  • Addressable RS422 monitor control
    by AHnet protocol

  • GPI (SubD9)
  • Movements control
