A straight forward motorized, foldable monitor

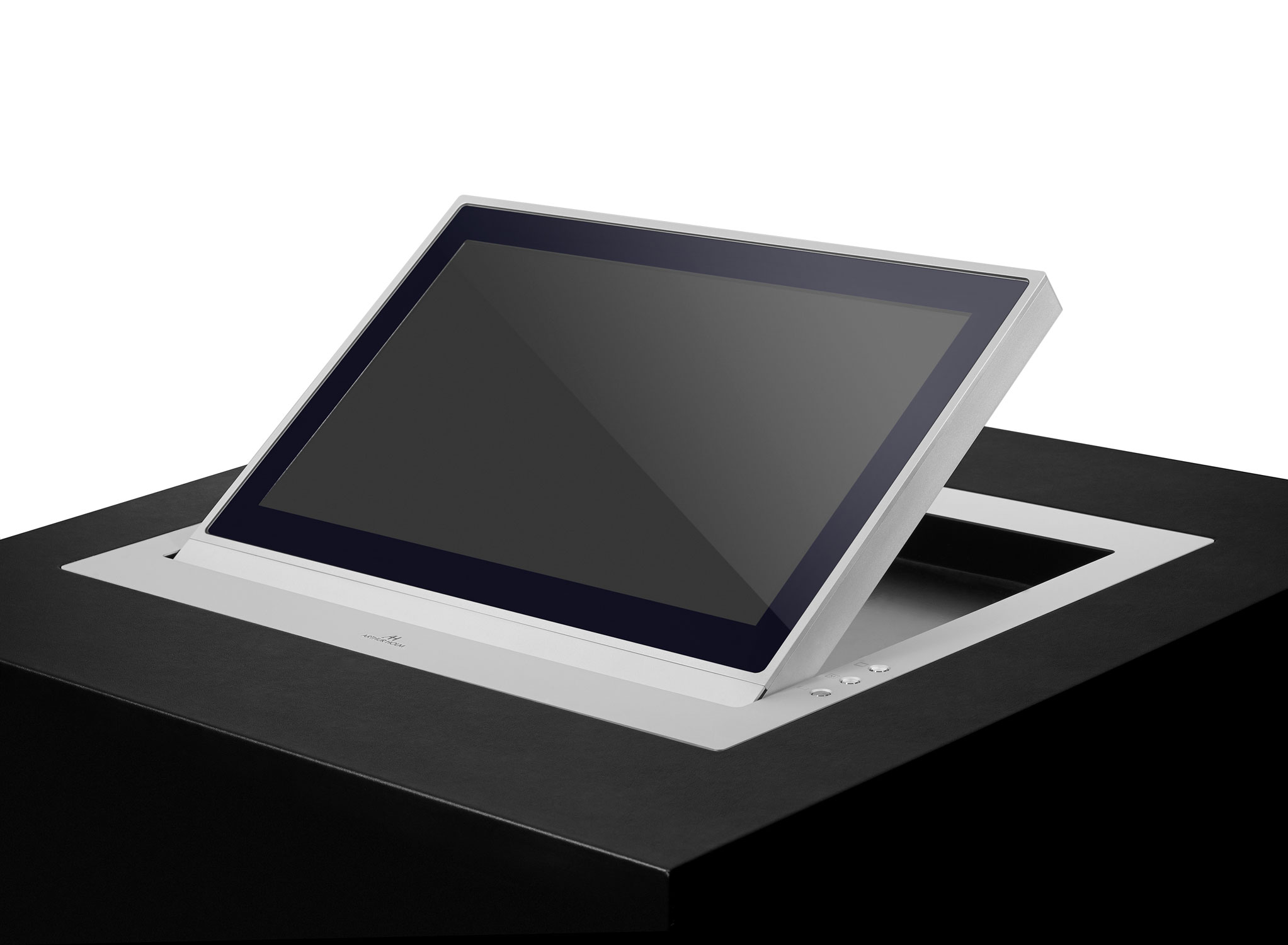

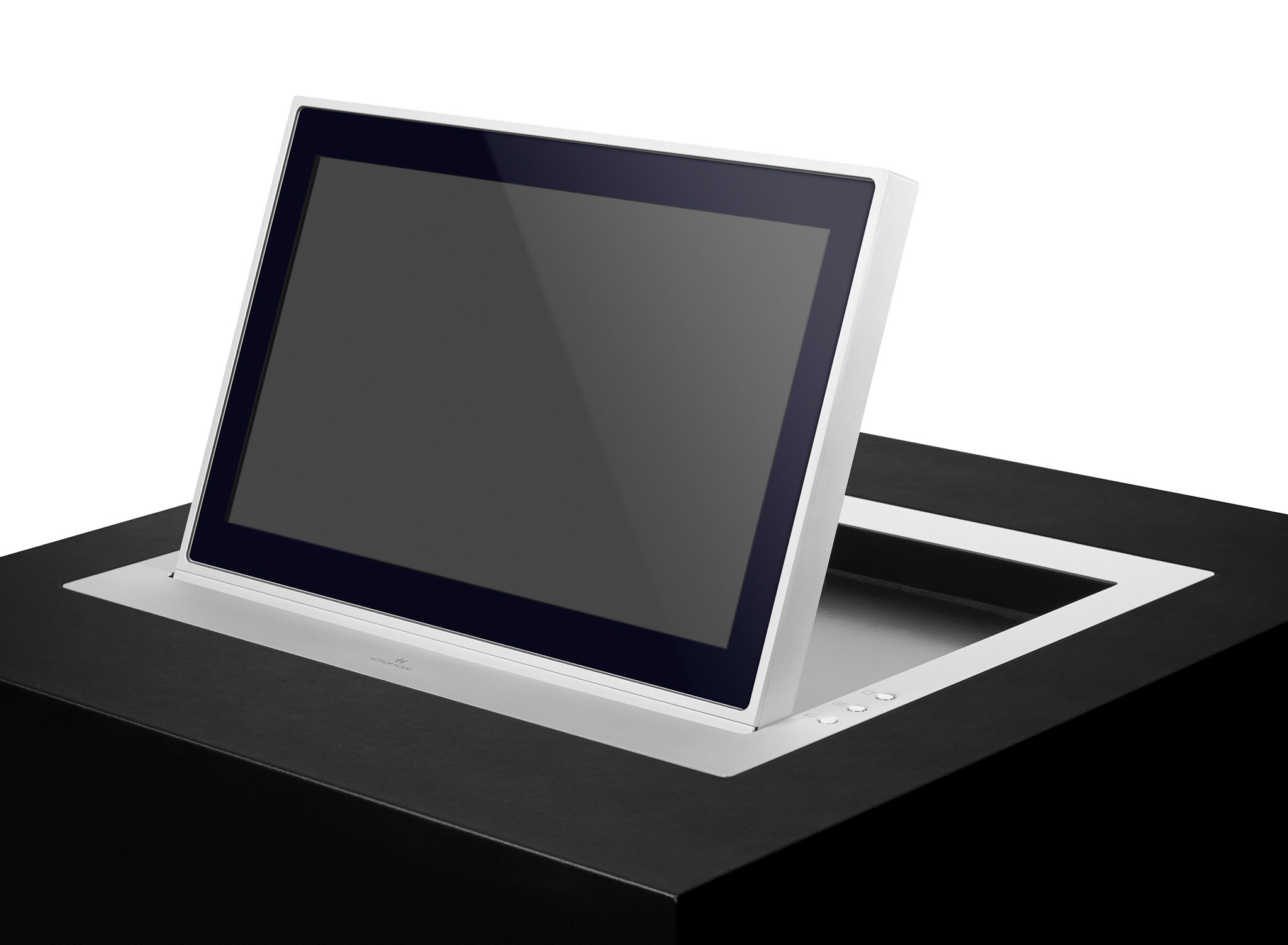

Dynamic1H motorized foldable monitor provides a horizontal motorized movement. The screen is always visible, it raises and leans and can be stopped at any position between 0 and 70°. A smart memory system enables both set up and recall of the desired tilting position. Built entirely of aluminum and with a black edged anti-reflection glass, Dynamic1H monitors are extremely elegant, discreet and timeless. The anodized finish provides a soft, silky effect. It is extremely resilient and serves to dissipate heat.
The glass protects the screen of the Dynamic1H, reduces the mirror effect, allows natural transparent colours and also works as a multi-touch surface (optional). Dynamic1H foldable monitors are equipped with a safety system which stops the movements if any resistance is detected. These monitors are remotely controlled and diagnosable through the ERT interfaces in a simple and cost effective way. This range is available in 12″, 17″ and 22″ sizes all providing excellent contrast and unsurpassed viewing angles.
Positions
- Foldable
- 1 movement
- 17,3”
- Full HD
- Memorized position
- Fully motorized
- Size
17.3” TFT Active Matrix, FULL HD
- Resolution
1920 (h) x 1080 (v)
- Contrast ratio
600:1
- Pixel
0.1989 (h) x 0.1989 (v) mm
- Viewing angle
60°/80° (u/d) / 80°/80° (l/r)
- Viewing area
381.888 (h) x 214.812 (v) mm
- LED backlight lifespan
50.000 hrs
- Response time
Tr 37 ms, Tf 7 ms
- Temperature
Operating 0ºC — +40ºC
Storage -20ºC — +60ºC
- Frame
Anodized Aluminum
- Glass
AR 2-side with an anti-reflective coating on the glass surface. Thickness: 2.0 ± 0.3 mm
- Cover plate
Stainless steel. Optional matte finish, or can be veneered to match the furniture
- Input signal
DVI-I (1 input) – HDCP Compliant
DVI-D (1 input) – HDCP Compliant
- RJ45 CAT5 (with loop)
Addressable RS422 monitor control by AHnet protocol
- GPI (SubD9)
Up/Down control
- Foldable
- 1 movements
- 21,5”
- Full HD
- Memorized position
- Fully motorized
- Size
21.5” TFT Active Matrix, FULL HD
- Resolution
1920 (h) x 1080 (v)
- Brightness
300 cd/m2
- Contrast ratio
1000:1
- Pixel
0.247 (h) x 0.247 (v) mm
- Viewing angle
178° (v) / 178° (h)
- Viewing area
476.064 (h) x 267.786 (v) mm
- LED backlight lifespan
30.000 hrs
- Response time
Tg-g 25 ms
- Temperature
Operating 0ºC — +40ºC
Storage -20ºC — +60ºC
- Frame
Anodized Aluminum
- Glass
AR 2-side with an anti-reflective coating on the glass surface. Thickness: 2.0 ± 0.3 mm
- Cover plate
Stainless steel. Optional matte finish, or can be veneered to match the furniture
- Input signal
DVI-I (1 input) – HDCP Compliant
DVI-D (1 input) – HDCP Compliant
- RJ45 CAT5 (with loop)
Addressable RS422 monitor control by AHnet protocol
- GPI (SubD9)
Up/Down control
